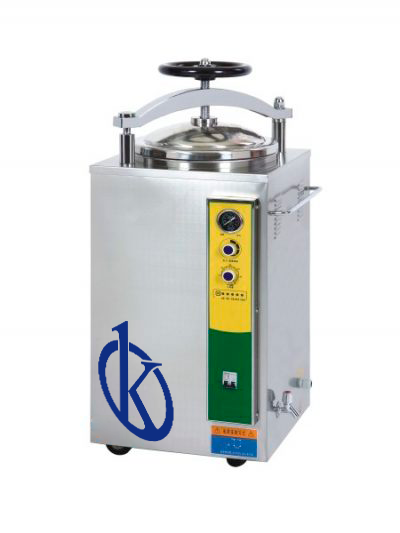

Hand Wheel Pressure Steam Autoclave Sterilizer YR05669 // YR05672

ManufacturerKalstein

ManufacturerKalstein

Product Description

  • Fully stainless steel 304 structure.
  • Microprocessor control, indicator light indicates working status, water level.
  • Auto discharge the cool air, and steam discharging automatically after sterilization.
  • Hand wheel type of quick-open door structure.
  • Door safety interlock device.
  • Double scale indication pressure gauge.
  • Self-inflating type rubber.
  • Automatically shut off with beep reminding after sterilization.
  • With two stainless steel sterilization.
  • Standard PT/TT test interface is provided for convenient testing.
  • Emergency exhaust valve.
Safety Protection Device
  • Door safety interlock device.
  • Safe protection of water lacking
  • The program will be stopped if water level lower than the low limit.
  • The buzzer alarms when a cycle of operation is completed.
  • Over temperature& over pressure auto-protection.
  • Over current protector.
  • Safety valve of auto release against over-pressure.
Technical Specifications
Model YR05669 YR05670 YR05671 YR05672
work pressure 0-0.22MPa
Work temperature 134°C
Working temperature range 105 – 134℃
Sterilization time 0 – 60 minutes
average heat ≤1°C
chamber volume 35L / Ø340×450mm 50L / Ø340×550mm 75L / Ø400×600mm 100L / Ø440×650mm
product size 450×450×1010mm 510×470×1130mm 560×560×1130mm 540×560×1250mm
package size 570×570×1150mm 590×590×1280mm 650×650×1280mm 680×680×1370mm
GW/NW 72/56kg 88/68kg 100/80kg 110/85kg
Energy 2.5KW 3.0KW 4.5KW 4.5KW



Additional Information

Weight N/A
Dimensions N/A
Model

YR05669, YR05670, YR05671, YR05672
