Heating Mantle YR05021 // YR05036
Manufacturer: Kalstein
Manufacturer: Kalstein
Product Description
YR heating mantle are the most widely used heating mantle in laboratories.
- Once shaping shell is made of cold rolled steel sheet with surface spraying treatment
- nichrome heating wire, litter warming up time, long service life
- Easy operation, wide application
- Precise PID Temperature control meets high accuracy experiment needs

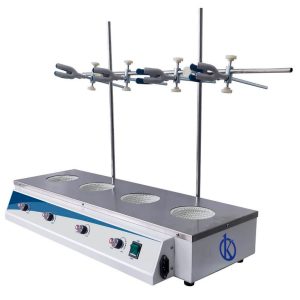

- Digital type single position mantles are with outer sensor, multi position mantles are with inner sensor, outer sensor optional
Technical Description
| Type | Analog | ||||||
| Model | YR05021 | YR05022 | YR05023 | YR05024 | YR05025 | YR05026 | YR05027 |
| Capacity (ml) | 100 | 250 | 500 | 1 000 | 2 000 | 3 000 | 5 000 |
| Voltage (V) | 200 – 240V / 50 – 60Hz or 100 – 120V / 50 – 60Hz | ||||||
| Max Use Temperature (°C) | 380 | ||||||
| Power (W) | 100 | 150 | 250 | 350 | 450 | 600 | 800 |
| Working Size | Continuous | ||||||
| Exterior Size (mm) | Ø200×160 | Ø260×200 | Ø300×230 | Ø340×245 | Ø350×250 | ||
| Packing Size (mm) | 230 x 230 x 170 | 290x290x220 | 330x330x250 | 365x365x295 | 390x390x310 | ||
| Net Weight (Kg) | 2.5 | 4 | 5 | 7.5 | 8.5 | ||
| Gross Weight (Kg) | 2.8 | 6 | 7 | 8 | 9.2 | ||
| Type | Digital | ||||||
| Model | YR05030 | YR05031 | YR05032 | YR05033 | YR05034 | YR05035 | YR05036 |
| Capacity (ml) | 100 | 250 | 500 | 1 000 | 2 000 | 3 000 | 5 000 |
| Voltage (V) | 200 – 240V / 50 – 60Hz or 100 _ 120V / 50 – 60 Hz | ||||||
| Max Use Temperature (°C) | 380 | ||||||
| Power (W) | 100 | 150 | 250 | 350 | 450 | 600 | 800 |
| Working Size | Continuous | ||||||
| Exterior Size (mm) | Ø200 x 160 | Ø260×200 | Ø300×230 | Ø340×245 | Ø350×250 | ||
| Packing Size (mm) | 230 x 230 x 170 | 290x290x220 | 330x330x250 | 365x365x295 | 390x390x310 | ||
| Net Weight (Kg) | 2.5 | 4 | 5 | 7.5 | 8.5 | ||
| Gross Weight (Kg) | 2.8 | 6 | 7 | 8 | 9.2 | ||
Additional Information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | YR05021, YR05022, YR05023, YR05024, YR05025, YR05026, YR05027, YR05030, YR05031, YR05032, YR05033, YR05034, YR05035, YR05036 |
