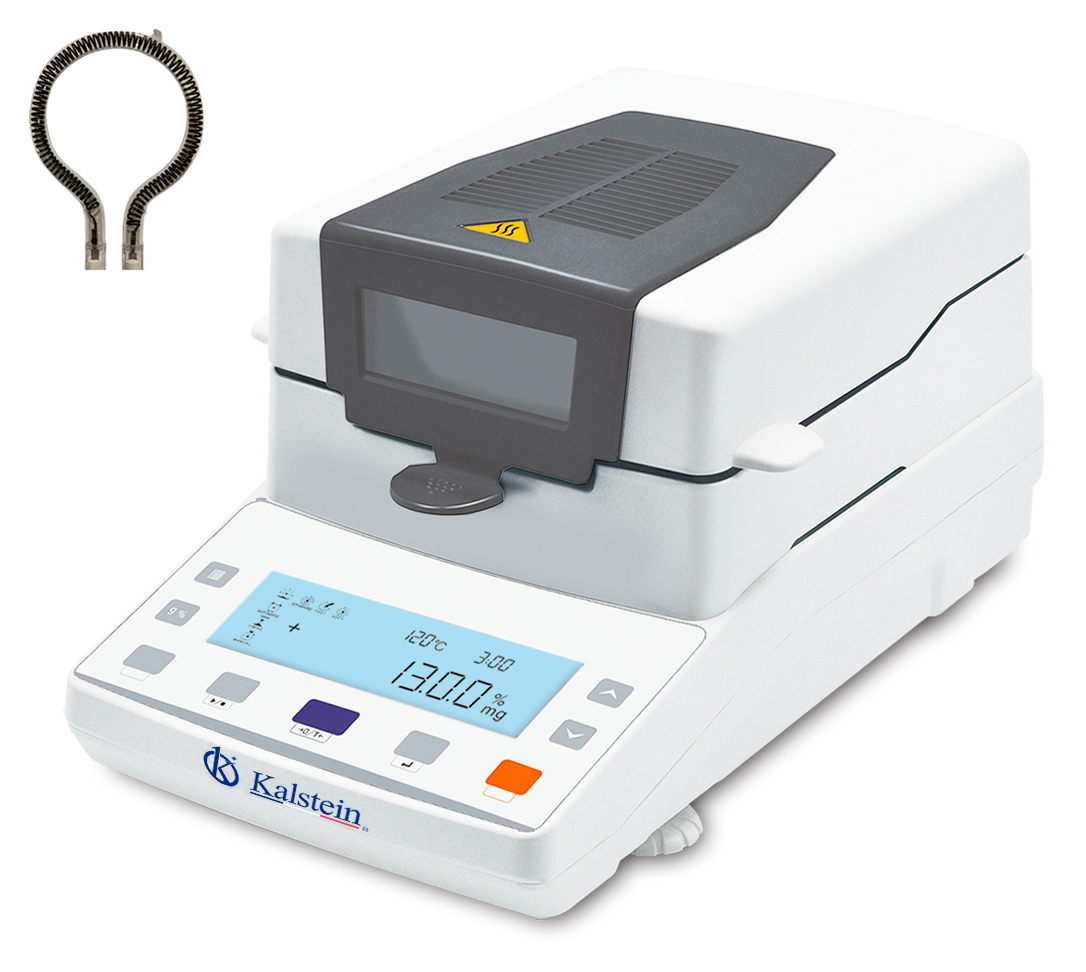

Infrared Moisture Analyzer YR05556

Manufacturer: Kalstein

Product Description

  • Infrared lamp/HBM sensor
  • Aluminum shell/Stainless steel chamber
  • High definition LCD
  • Temperature/Time set
  • The percentage of moisture content/dry residual
  • Store historical set
  • Option:Aluminum box/Printer/Grinder
Technical Specifications
Model YR05556
Capacity 110g
Readability 0.001g
Operating Temp 5โ„ƒ-35โ„ƒ
Display LCD HD Back Display
Calibration External Calibration
Interface RS232(Standard) / USB(Optional)
Pan Size ร˜90mm
Packing Size 490x350x360mm
Gross Weight 7.5kg
Heating Source Infrared Lamp
Temp. Sensor PT100
Temp. Range 40โ„ƒ-160โ„ƒ
Temp. Step 1โ„ƒ
Moisture Range 0.00%-100.00%
Moisture Readability 0.01%
Dry Range 100.00%-0.00%
Dry Readability 0.01%
Temp Setting 40โ„ƒ-199โ„ƒ By 1โ„ƒ Step
Time Setting 1-99min By 1s
Number Of Storage 15
Number Of History 5
Heater 220V ยฑ15% 50HZ/110Vยฑ15% 60HZ/400W
Balance Input:220V 50HZ/110V 60HZ ย Output:9V

Additional Information

Weight 7,5 kg
Dimensions 49 × 35 × 36 cm
