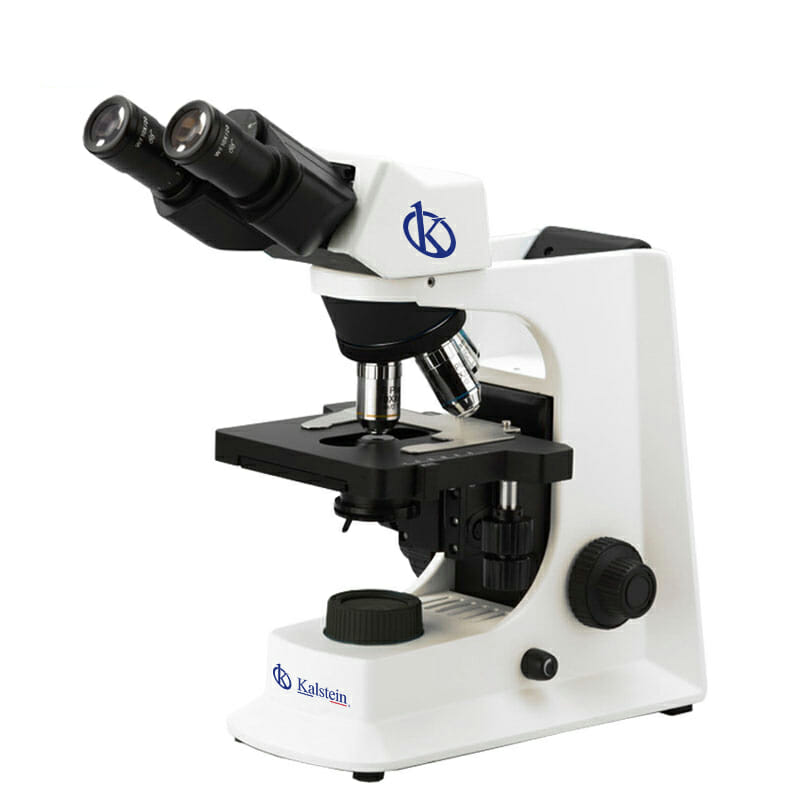

Laboratory Biological Microscope, Binocular, Achromatic YR05787-1A

ManufacturerKalstein

Description

  • Entry Level Laboratory Microscope With Full Range Upgrade Extension
  • Can Use 40x LWD Infinity Plan Objective W.D.=3.0m To Avoid Contaminated By Cedar Oil
  • Creative 100x Water Objective Instead Of I00x Oil Objective For Easy Use Without Oil
  • High Rigidity Body Structure Design Supply High Steady & Easy Handle
  • Different Color Available To Customize Your Model!
Seidentopf Head

Inclined 30°,Rotatable 360°, Interpupillary Distance 48-75mm, High Eyepoint Eyepiece, Which Is Convenient For People With Different Sitting Height; The Integrated Design Of The Eyepiece Lens Barrel, Avoids The Loss And Contamination Of The Eyepiece And Enhances The Integrated Performance Of The Microscope.

Quadruple, Backward

4 Sets Objective Available: Achromatic, Plan, Infinity E-Plan, Infinity Plan.

Double Slide Holder Working Stage

Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm

Condenser & Light Source

Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder 3W-LED Illumination Systems

Technical Specification:
Model YR05787-1A
Power Supply Type DC USB Adapter
Transmit Light 3W LED, Brightness Adjustable
Light Source Type LED
Condenser N.A. 1.25
Condenser Type Abbe
Condenser Features Rack & Pinionↆ↑ Filter Holder Iris Diaphragm
Focusing Knob Low Position Focusing Knob For Easy Operation
Focusing Scale 0.002mm
Focusing Range 26mm
Focusing Type Coaxial Coarse & Fine
Focusing Features Safety Stop Screw Tension Adjustable
Working Stage Moving 76x52mm
Working Stage Size 145x140mm
Working Stage Type 2 Layers Mechanical
Working Stage Features Double Slide Holder Size ≥140x140mm
Objective Achromatic Objective 4x,10x,40x,100x
Objective Type Achromatic
Nosepiece Holes 4 Holes
Nosepiece Features Inward
Eyepiece WF10x/18mm, 2 pcs
Eyepiece Diameter 23.2mm
Head Diopter Left Adjustable
Head Interpupillary 48~75mm
Head Rotation Head Rotate 360°
Head Inclination 30°
Standard Magnification 40x-1000x
Optical System Achromatic
Upgrade Function BF+PH+DF+PL+FL
Standard Function BF

Additional information

Weight 7,5 kg
Dimensions 39 × 28 × 45 cm
Model

YR05787-1A

Characteristic Feature

No Features, YR05788-op1 Eyepiece- WF20x, Dia.23.2mm, pc, YR05788-op2 USB3.0 CMOS Digital Camera, High Fps, Fluorescent Image, 1.5M~45M"
