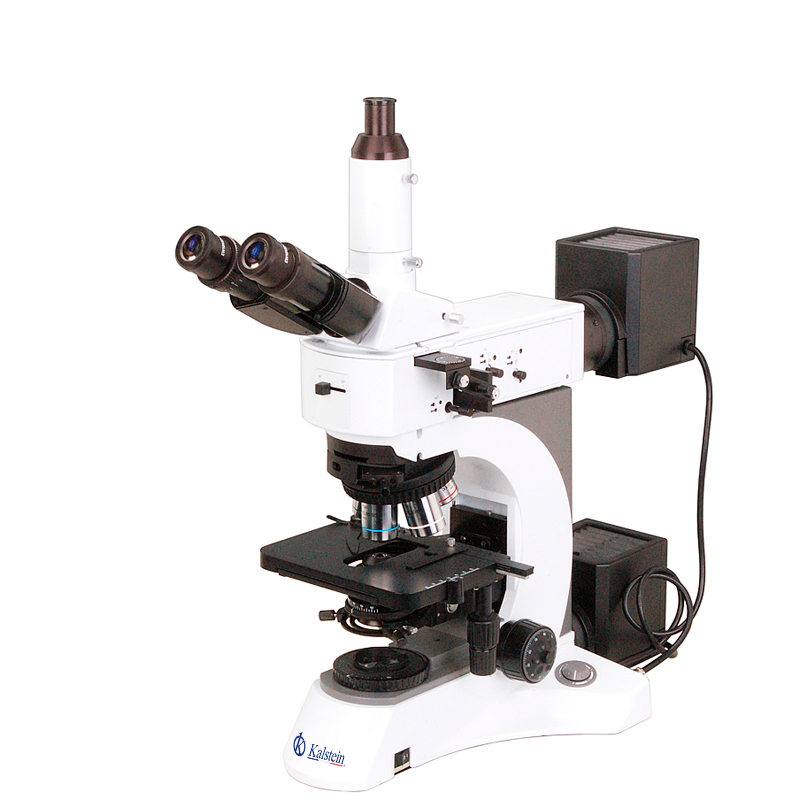

Metallurgical Microscope YR0255

Manufacturer:ย Kalstein

Manufacturer:ย Kalstein

Product Description

YR0255 Metallurigcal Microscope, is an ideal instrument for industry inspecition and science research laboratory.

  • Infinity Optical System, BF/DF, Transmit & Reflect Illumination, DIC,ย Polarzing System
  • Full Range BF/DF Objectives Included
  • Polarization System Optional
  • DIC System Optional
  • Powerful Transmitted And Reflected Illumination System with Kohler Illumination.
Technical Specifications
Model YR0255
Standard Function BF-DF
Upgrade Function BF-DF-PL-DIC
Features Infinity BF+DF DIC
Optical System Infinity Plan

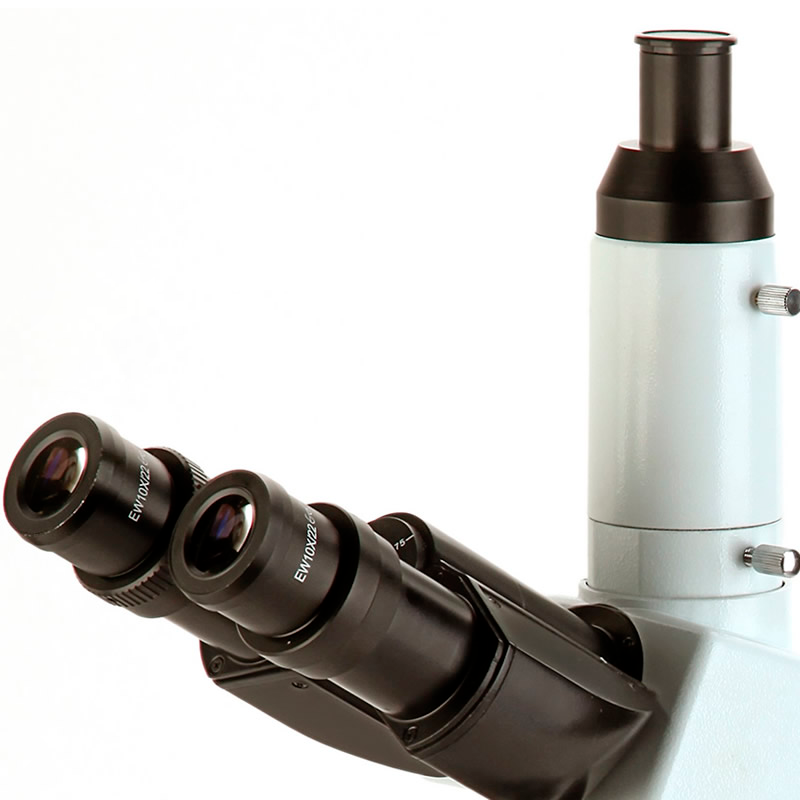

Head Type Seidentopf Trinocular
Head Inclination 30ยฐ
Head Rotation Head Rotate 360ยฐ
Head Interpupillary 40~75mm
Head Diopter Left Tube Adjustable
Head Light Path E50 : P50
Eyepiece Diameter 30.0mm
Nosepiece Features Inward with DIC Slot
Nosepiece Holes 5 holes
Objective Features LWD Covreless BF+DF DIC
Objective Type Infinity Plan Dark Field Metallurgical
Working Stage Features Size โ‰ฅ 140 x 180mm
Working Stage Type 2 Layers Mechanical
Focusing Features Safety Stop Lock Ring Tension Adjustable
Focusing Type Coaxial Coarse & Fine
Light Soruce Features Kohler Illumination Aspheric Collector Halogen 100W
Light Source Type Halogen
Power Supply Type AC 110V-240V

Additional Information

Weight 11 kg
Dimensions 46,3 × 38,4 × 83 cm
