Multi-Angle Spectrophotometer with 8 Angles YR053418-3 // YR053418-4

ManufacturerKalstein

ManufacturerKalstein

Product Description

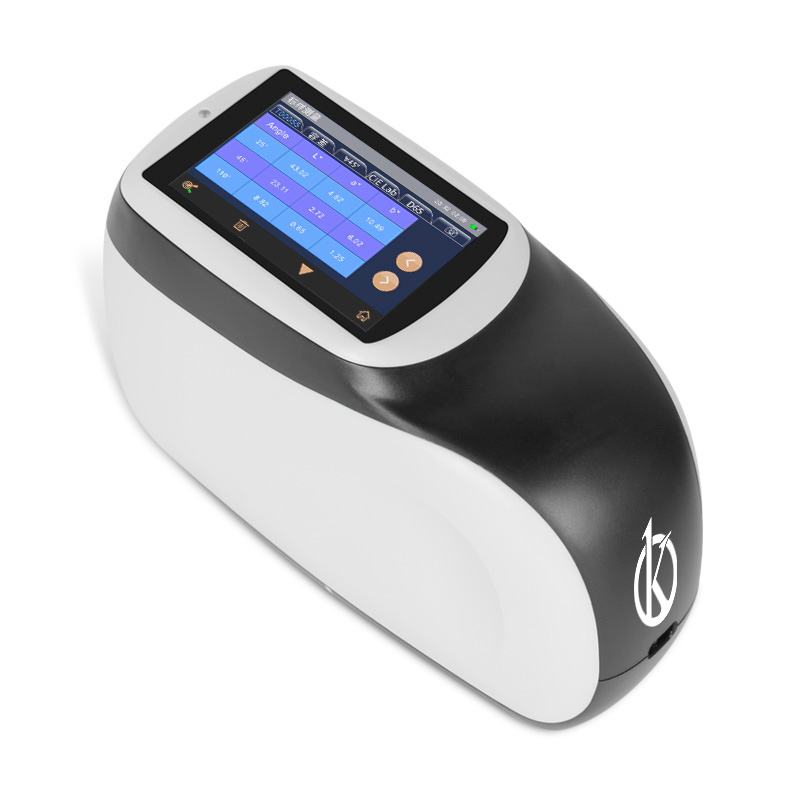

YR053418 multi-angle spectrophotometer adopts industrial-grade MCU and is equipped with 3 measuring angles, under the superior performance of the optical measurement system supported by YR053418 multi-angle spectrophotometer has excellent performance in multi-angle chromatic aberration measurement, even in the curved surface, but also has a high measurement accuracy and stability.

Kalstein Multi-angle spectrophotometer YR053418 is used to measure the color difference for the surface paint which is affected by different viewing angles and viewing conditions. It can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products.

YR053418 multi-angle spectrophotometer adopts industrial-grade MCU and is equipped with 3 measuring angles, under the superior performance of the optical measurement system supported by YR053418 multi-angle spectrophotometer has excellent performance in multi-angle chromatic aberration measurement, even in the curved surface, but also has a high measurement accuracy and stability.

Technical characteristics
  •  Multi-angle measurement
    Adopt 3 illumination sources, 1 receivers to measure 3 measurement angles at the same time
  • More intuitive display
    Touch screen can display all Angle measurement results, more intuitive view of the comprehensive data.
  • 256 Image Element Double Array CMOS Image Sensor
    The higher optical resolution ensures the measuring speed, accuracy, stability and consistency of the instrument. The core technology makes it as the same platform with international standards and complete compatibility.
  • Adopt Full spectrum LED light source with blue enhancement
    The Full spectrum LED light source with blue enhancement ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of LED in a specific band, and ensures the accuracy of instrument measurement results and low cost maintenance.
  • Concave grating spectrophotometric technology
    Using concave grating spectrophotometric technology, with higher resolution, makes  color measurement more accurate.
  • Professional-grade white board
    Professional-grade white board, high hardness in the surface, stable optical performance
  • Higher quality
    Industrial grade real-time processing MCU, supports WIFI, Bluetooth 5.0 transferring more stable and reliable.
  • Ergonomics Novel and fashionable appearance design
    The instrument appearance design is easy to operate, and the hand holding position and the measurement button are well-designed, which can meet different holding habits, smooth and fine surface, from the high-precision appearance treatment process.
  • Color camera preview, can clearly observe the measured area
    Built-in color camera positioning, can accurately judge the object measured position, and improve the measurement efficiency and accuracy.
  • Multiple color measurement space, multiple observation light sources
    Offer CIE LAB,XYZ,Yxy,LCh,β XY,DIN Lab99 color space, And D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83/U30) A variety of light source, which can meet the special measurement demand under different measurement conditions.
  • Easily analyze data
    The screen can intuitively display spectrum/data, sample chromaticity value, color difference value/figure, pass/fail results, color simulation, sample effect value, effect difference value and other data, convenient to view while also greatly improve the user’s work efficiency.
Technical parameters
Model YR053418-3 YR053418-4
Measurement Geometry 8 measurement angles (6 illumination sources, 2 receivers) 12 measurement angles (7 illumination sources, 2 receivers)
Measure Angle 45° Receiver: 45° Receiver:
45as-15°,45as15°,45as25°,45as45°,45as75°,45as110° 45as-15°,45as15°,45as25°,45as45°,45as75°,45as110°
15°Receiver: 15°Receiver:
15as-45°,15as-15° 15as-45°,15as-15°,15as15°,15as-30°,15as45°,15as80°
Conform to the standards:ASTM D 2244,E 308,E 1164,E 2194,

E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4

Conform to the standards:ASTM D 2244,E 308,E 1164,E 2194,

E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4

SAE J 1545 SAE J 1545
Application Provide accurate and consistent color measurement for metallic,

pearlescent and other complex special effect color products

Provide accurate and consistent color measurement for metallic,

pearlescent and other complex special effect color products

Light Source Full spectrum LED light source with blue enhancement Full spectrum LED light source with blue enhancement
Lamp Life 5 years, 3 million times measurements 5 years, 3 million times measurements
Spectrophotometric Mode Concave Grating Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400nm-700nm 400nm-700nm
Wavelength Interval 10nm 10nm
Measurement Range 0~600% 0~600%
Semiband Width 10nm 10nm
Measuring Aperture Φ12mm Φ12mm
Color Space CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99 CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
Color Difference Formula ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175 ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175
Other Colorimetric Index Flop Index, Int-Em Flop Index, Int-Em
Observer Angle 2°/10° 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),

F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)

D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),

F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)

Display Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value
Measuring Time Approx. 1 second for one angle Approx. 1 second for one angle
Approx. 8 seconds for all angles Approx. 12 seconds for all angles
Repeatability Spectral reflectance:  Standard deviation within 0.08% Spectral reflectance:  Standard deviation within 0.08%
Chromaticity value:  ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Chromaticity value:  ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Reproducibility ΔE*<0.10,avg on the gray tile of BCRA tile set ΔE*<0.10,avg on the gray tile of BCRA tile set
ΔE*<0.25,avg on the color BCRA tile set ΔE*<0.25,avg on the color BCRA tile set
Inter-instrument Error 0.18ΔE*00(avg on reference Series II BCRA tile set) 0.18ΔE*00(avg on reference Series II BCRA tile set)
Effect Parameters Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV) Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV)
Effect Measurement 6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80° 6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80°
15d Diffuse coarseness(DC) 15d Diffuse coarseness(DC)
Effect Repeatability Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration) Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration) Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Effect Reproducibility Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations) Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations)
(avg on reference Series II BCRA tile set) (avg on reference Series II BCRA tile set)
Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set) Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set)
Trigger mode Pressure sensing trigger, button trigger, software trigger Pressure sensing trigger, button trigger, software trigger
Measuring Mode Single measurement, average measurement (1-99), continuous measurement (1-99) Single measurement, average measurement (1-99), continuous measurement (1-99)
Locating Mode Color camera preview Color camera preview
Dimension L*W*H=195X83X128mm L*W*H=195X83X128mm
Weight About 1Kg About 1Kg
Power lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge
Display 3.5-inch TFT color LCD, Capacitive Touch Screen  3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB, Bluetooth 5.0 USB, Bluetooth 5.0
Data Storage 1000 pcs Standards,4000 pcs Samples 1000 pcs Standards,4000 pcs Samples
Language Simplified Chinese, Traditional Chinese, English Simplified Chinese, Traditional Chinese, English
Operating Environment 10℃ to 50℃, humidity does not exceed 85%, no condensation 10℃ to 50℃, humidity does not exceed 85%, no condensation
Storage Environment -20℃ to 50℃, humidity does not exceed 85%, no condensation -20℃ to 50℃, humidity does not exceed 85%, no condensation
Calibration Built-in white board parameters, external white board, black light trap, color board Built-in white board parameters, external white board, black light trap, color board
Calibration Interval 4 hours,8 hours,24 hours,Startup calibration 4 hours,8 hours,24 hours,Startup calibration
Standard accessories Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband
Optional Accessory Micro-printer Micro-printer
Notes Technical parameters are for reference only, subject to actual sales products. Technical parameters are for reference only, subject to actual sales products.
