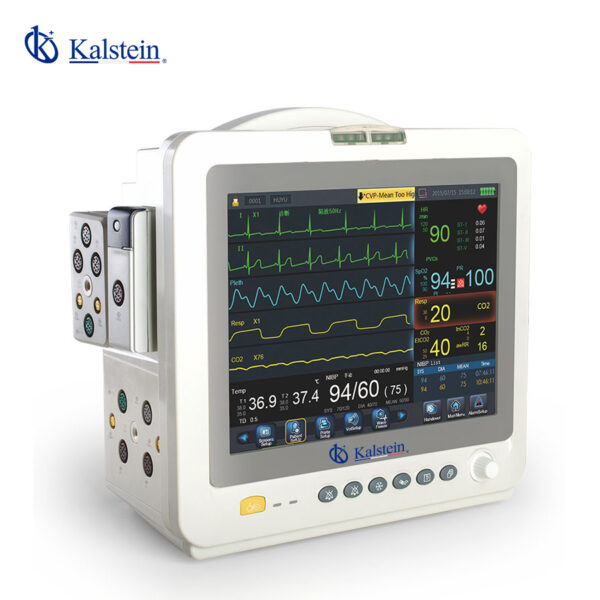

Multi-parameter patient monitor YR02178 // YR02179

Manufacturer : Kalstein

Manufacturer : Kalstein

Product Description

• Monitoring of adults, children and newborns is supported;
• Slim body with hidden handle, easy to move;
• Visual and audible alarm with alarm light in three colors;
• Lithium battery inside;
• Fanless design, meets multi-patient ward requirements;
• Capable of saving data when power supply fails.

Model YR02178 YR02179



Input



3 leads or 5 leads selectable
3 conductor cable: RA; LA LL or R: L; F
5 Lead wire: RA: LA: RL: LL: V or R: LN: F: C
Selection of potential clients



3 leads: 1, 1, 111
5 leads: 1, Il, Il, AR, AVL, AVF. v
ECG waveform 2 channels
win selection x0.25, x0.5.x1, x2.x4, Auto
sweep speed 12.5mm/s, 25mm/s, 50mm/s
Heart rate for newborns 15-350BPM
Heart rate for Adult Pediatric 15-300BPM
Precision 1 bpm or 1%, whichever is greater
Resolution 1 bpm
Filter



Diagnostic mode: 0.05-100Hz
Monitor mode: 0.5-40Hz
Surgical mode: 1.0-25Hz
Protection



Withstand voltage of 4000VAC / 50Hz in isolation
Against electrosurgical interference and defibrillation
alarm range 15-350bpm
ST segment detection



Measurement range: -2.0mv to 2.0mv
Alarm range: -2.5mv to 2.5mv
arrhythmia analysis Yes
Alarm audible and visual alarm, recallable alarm event
rhythm detection Yes
Drug dose calculation Yes
Standby mode Yes
Breathing
Method Tooraclc impedance
Measuring range



Newborn / Pediatric: 0-150 RPM
Adult: 0-120 RPM
apnea alarm No alarm, 10s, 15s, 20s, 25s, 30s, 35s, 40s selectable
Alarm Audible and visual alarm, recallable alarm events
ETCO2 (optional)
Measuring range 0-99mmHg
Precision



0 to 40mmHg ± 2mmHg
41 to 76mmHg ± 5mmHg
77 to 99 mmHg ± 1 0 mmHg
Sample flow rate



Minimum: 50ml/m-7.5ml/m
Maximum: 50ml/m + 15ml/m
Start-up file



<1 min, once the module boots up, it reaches ISO
After 1 minute, enter full accuracy mode
respiratory rate 0 to 120rpm
Respiratory Rate Accuracy ±2rpm
Response time <240ms (10% to 90%)
Additional characteristics 10.4” screen, ECG, SpO2, RESP, NIBP, TEMP & PR 12″ display, ECG, SpO2, RESP, NIBP, 2*TEMP & PR

Additional Information

Weight 6 kg
Model

YR02178, YR02179
