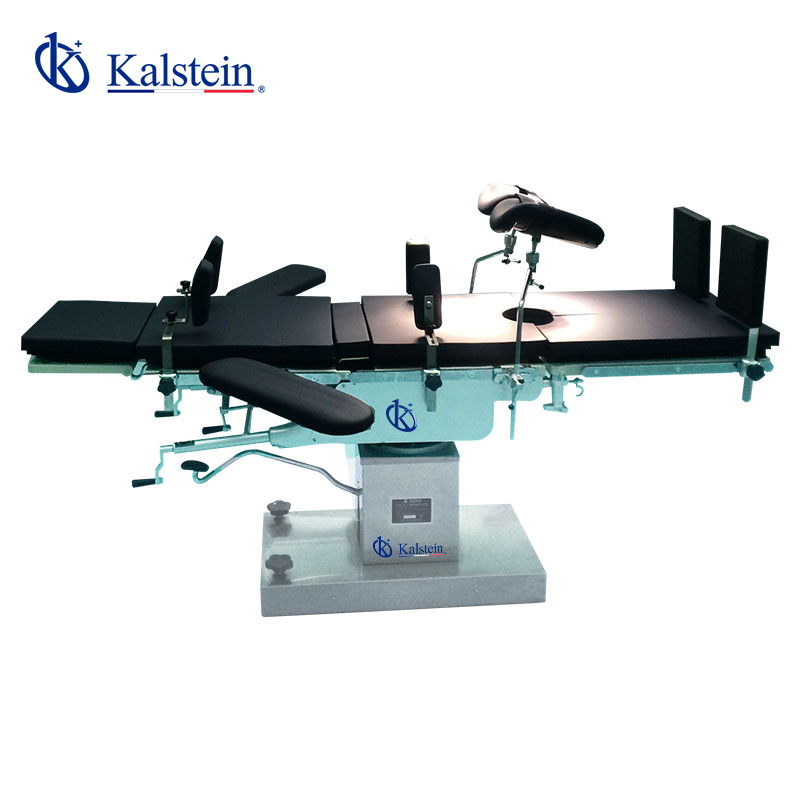

Operating Tables YR02155 // YR02156 // YR02157
Manufacturer: Kalstein
Manufacturer: Kalstein
Product Description
YR Series operating tables are tailered to a variety of positioning requirements from different suigical disciplines.You always find the one from YR Series that meet your demands perfectly, no matter during ENT, ophthalmological, endoscopic, or any other procedures.
| Model | YR02155 | YR02156 | YR02157 |
|
Control
|
Wired remote control | ||
| Optional foot control | N / A | ||
| Table length | 2100 mm | ||
| Table width | 500mm (does not include side rails) | ||
| Table height | 1040mm / 690mm | 800mm / 550mm | |
| Trendelenburg / Reverse | 25 ° / 25 ° | ||
| Lateral tilt (right / left) | 20 ° / 20 ° | ||
| Head plate (up / down) | 90 ° / 90 ° | ||
| Back plate (up / down) | 80 ° / 12 ° | ||
| Leg plate (up / down / split) | 10 ° / 100 ° / 100 ° x 2 | ||
| Flexion / Reflection | 192 ° / 100 ° | ||
| Kidney elevator | 0 ~ 120mm, external, optional | 0 ~ 120mm, extemal, optional | |
| Operation load | 300 Kg | 200 Kg | 200 Kg |
| Input power | AC 110 / 220V, 60 / 50Hz | ||
Additional Information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | YR02155, YR02156, YR02157 |
| Variación | Electro-hydraulic OT, built-in elevator, Electro-hydraulic OT, for universal application, Electro-hydraulic OT, specially reduced lift height for minimal access surgery or Ophthal/ENT application |
