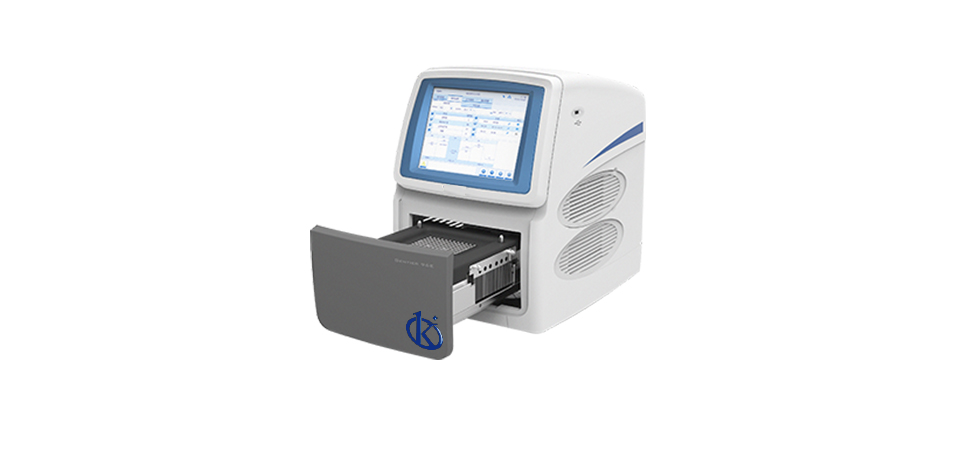

The YR01869 real-time PCR system is a PCR assay machine designed to meet the specific needs of high-end laboratories. With five fluorescence channels, it is capable of processing 96 samples in a single test. Enjoy its powerful and efficient temperature control system, user-friendly software and user-friendly operating designs. The real-time PCR system can provide maximum reliability and efficiency for all your real-time PCR needs.
Only 7s for all 96-well fluorescence scanning can significantly reduce testing time and improve efficiency for laboratory professionals.
Based on the Peltier heating/cooling method, the maximum heating ramp rate is >6.1℃/s and the maximum cooling ramp rate is >5.0℃/s.
Power failure protection design can recover the experiment automatically, no worry about instantaneous power failure.
More convenient with two configurations Independent configuration.
With 10.4-inch touch screen
PControl of PC software via connection.
Gentier 96 E/R offers various data analysis functions, including absolute quantitative analysis, relative quantitative analysis, SNP analysis, melting curve analysis, etc.
|Fluorescence Scanning Time||7s|
|Dye Compatibility||Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green|
|Channel 2: HEX, VIC, TET, JOE|
|Channel 3: ROX, Texas Red|
|Channel 4: Cy5|
|Channel 5: Alexa Fluor 680|
|Channel 6: FRET|
|Light Source||High-brightness, long life and maintenance-free LED light source,excitation from the top|
|Detector||Photodiodes (PDs), top scanning|
|Excitation Range||CH1: 465nm CH2:527nm CH3:580nm CH4:632nm CH5:680nm CH6:465nm|
|Detection Range||CH1: 510nm CH2:563nm CH3:616nm CH4:664nm CH5:730nm CH6:616nm|
|Fluorescence Dynamic Range||Adjustable|
|Sample Dynamic Range||From 101 to 1010copies|
|Heating Rate||>6.1 ℃/s|
|Cooling Rate||>5.0 ℃/s|
|Temperature Uniformity||±0.1 ℃|
|Temperature Accuracy||≤0.1 ℃|
|Gradient Range||1℃-40 ℃|
|Gradient Block||12 row|
|Special Temperature Protocol||Thermal gradients PCR, long PCR, Touch Down PCR|
|Sample Testing Linearity and Repeatability||Linear correlation: /r/ ≥ 0.999|
|Repeatability: cycle threshold (Ct) value CV≤0 0.5%|
|Control Modes||Model 1: 10.4 inch touch screen|
|Mode 2: PC direct control|
|Power Failure Protection||Automatically start running experiments after power supply, no need to wait PC software|
|Data Storage and Transmission||Upload and download through USB disk. 1000 results can be stored in machine|
|Reporting Function||Templates reserved; customized experiment report|
|Key Applications||Relative quantification, absolute quantification, melting curve analysis ,SNP analysis|
|Operating System for PC||Win7/Win10/Win11|
|Power Supply and Power Consumption||AC 100-240V,50-60HZ, 900VA|
|Weight||30 Kg (net)|
|Instrument Dimension||555*475*484mm (W*L*H)|
|Suitable Consumables||0.2mL 96-well plates, 8-tube strips, single tubes(clear, frosted and white).|
|Dimensions||67 × 58 × 58 cm|
