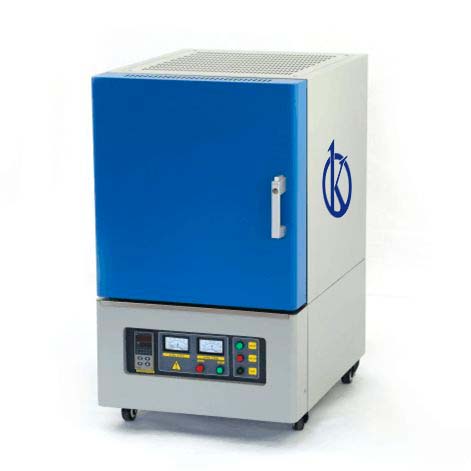

Universal Lab High Temp Box Muffle Furnace YR05272 // YR05284

Manufacturer: Kalstein

Description

The YR05272 // YR05284 series muffle furnace by Kalstein is the ideal solution for those seeking high-precision, durable tools for laboratory environments. Available in models that reach temperatures up to 1700°C, this furnace features a box structure that facilitates loading and unloading materials, making it perfect for annealing, material sintering, and compositional analysis tasks in university labs, research institutes, and quality control laboratories. Its double-layer design in carbon steel and alumina fiber insulation maximizes energy savings, while the 30-segment PID automatic control ensures precise and safe temperature management, protecting the equipment and guaranteeing consistent results.

Market Price

The price range for the YR05272 // YR05284 high-temperature muffle furnaces is between $1,715 and $8,880 USD, varying according to chamber size and model specifications. This competitive pricing reflects the value it brings in terms of durability, safety, and customization options. If you would like a quote tailored to your needs and to learn about financing options, Kalstein Plus allows you to generate your own quote in just a few steps and explore the advantages of this laboratory equipment.

Frequently Asked Questions

  • What is the maximum working temperature?
    This muffle furnace can reach up to 1700°C, although the recommended continuous working temperature is 1600°C to extend its lifespan.
  • What kind of protection does it include?
    The equipment includes a safety system that disconnects the furnace when the door is opened, along with overheating protection integrated into the PID controller.
  • Can the chamber size be customized?
    Yes, the furnace can be customized with different chamber sizes and has the option to include an LCD touchscreen control or software connection for easier monitoring.

Advantages and Disadvantages

This muffle furnace stands out for its robust structure, energy efficiency, and precise temperature control. Its air cooling system allows for quick temperature changes, optimizing time for processes that require repeatability and consistency. However, some models may be bulky and heavy, which could be a limitation for smaller laboratories. Additionally, the recommended heating rates above 1400°C are restricted to ensure optimal durability.

Field Applications

The YR05272 // YR05284 series muffle furnaces are widely used in material sintering and annealing processes, quality control testing, and thermal resistance studies in universities and quality control laboratories. These furnaces are ideal for experiments and tests where every degree of temperature matters to achieve precise and reliable results. The versatility of the models, along with customization options, makes them an excellent choice for high-level scientific applications.

Recommendations for Optimal Use

To prolong the lifespan of these muffle furnaces, it is advisable to adhere to the heating rate limits, especially when working at temperatures above 1400°C. Regular maintenance, such as chamber cleaning and thermocouple checks, ensures that the equipment maintains its precision and reliability. Additionally, the use of optional accessories, such as thermal gloves and crucible tongs, contributes to safe and efficient handling.

Explore the possibilities of this high-end furnace and optimize your laboratory processes with a personalized quote. Through Kalstein Plus, you can generate a quote and receive technical guidance to configure the model that best suits your specific needs.

Technical Specifications

Model YR05272 YR05273 YR05274 YR05275 YR05276
Chamber Size (DxWxH) (cm) 10x10x10 20x15x15 30x20x12 30x20x20 40x30x30
Capacity 1 4,5 7,2 12 36
Max. Temp 1200
Continuous Working Temperature ≦1100°C
Heather Fe-Cr-Al-Mo Wire
Thermocouple K type
Working Voltage 220-380V
Max. Power 1-9KW
Weight 70KG 93kg 84kg 124kg 178kg
Model YR05277 YR05278 YR05279 YR05280
Chamber Size (DxWxH) (cm) 10x10x10 20x15x15 30x20x20 40x30x30
Capacity 1 4,5 12 36
Max. Temp 1400
Continuous Working Temperature ≦1300°C
Heather SiC heater
Thermocouple S type
Working Voltage 220-380V
Max. Power 1-16KW
Weight 61kg 94kg 127kg 180kg
Model YR05281 YR05282 YR05283 YR05284
Chamber Size (DxWxH) (cm) 10x10x10 20x15x15 30x20x20 40x30x30
Capacity 1 4,5 12 36
Max. Temp 1700
Continuous Working Temperature ≦1600°C
Heather MoSi2 heater
Thermocouple B type
Working Voltage 220-380V
Max. Power 1-16KW
Weight 66kg 136kg 190kg 310kg

Additional information

Weight N/A
Dimensions N/A
Model

YR05272, YR05273, YR05274, YR05275, YR05276, YR05277, YR05278, YR05279, YR05280, YR05281, YR05282, YR05283, YR05284
