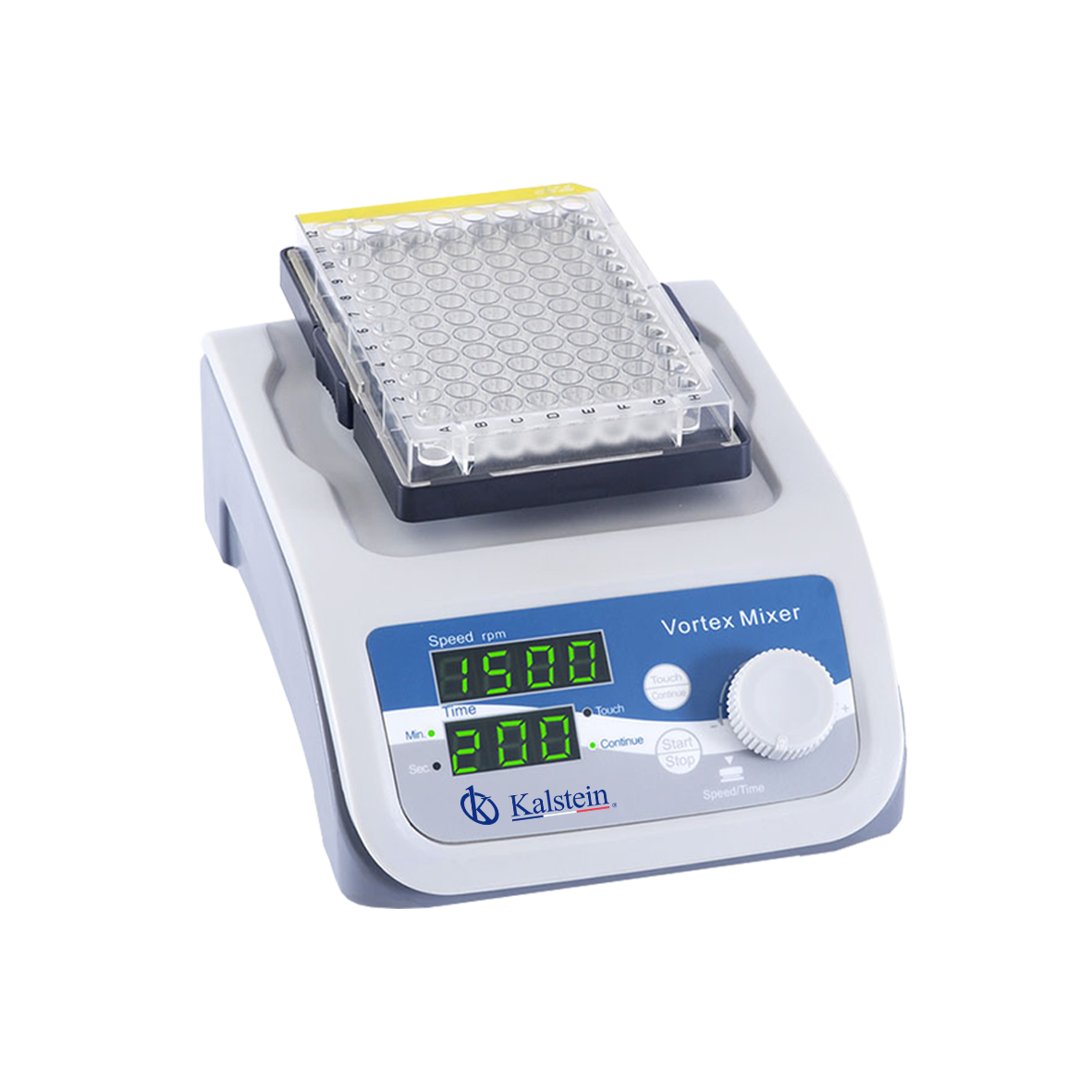

Vortex Mixer YR05761



YR05761  plate vortex mixer is best solution for shaking 96 well micro plate and other small size testing tube, centrifuge tube and pcr strip, etc. Applications in cell and molecular biology, microbiology and immunology, etc.

  • Intelligent controller for speed and timer;
  • Adopt permanent magnet rotor, with over-temperature protection, ensure long time working
  • Brushless motor, noiseless and maintenance-free;
  • Two operation mode “touching” and “continuous”, easy to switch
  • Can automaticly identify various clamps quickly and ensure safe using;
Technical Specifications
Model  YR05761
Input Power  AC100-250V /50/60Hz
Outout Power  18W
Drive Mode  DC24V brushless motor
Control Mode  PWM steolessly variable frequencv
Operation Mode  “jog”, “continuous”
Power Fuse  PPTC Resettable Fuses /no reolacement
Maximum Load  1.5Kg
Speed Range  0/200-3000r/min.
Oscillation Mode  Circumference
Circle diameter  4.5mm
Fixture Identification function  Automatic identification/ Safe and efficient
Speed function /showing  Full digital / bright LED display
Timing function /showing  Soeed timing function /showing Digital timing 15-999min
DimensionlLxWxH) countdown “jog”” timing / bright LED disolav
Weight  198x138x67mm
The noise for Maximum speed  4.1kg
Maximum acceleration  ≤3s
Maximum deceleration  ≤3s
Ambient temoerature /
relative humidity
5-40°C / 80 %
Protection grade  IP21
Testing standard  EN 61010-1,EN 61010-2-020,EN 61326-1,EN 61010-3-2/A2

Additional information

Weight 8,00 kg
Dimensions 34 × 40 × 47 cm
