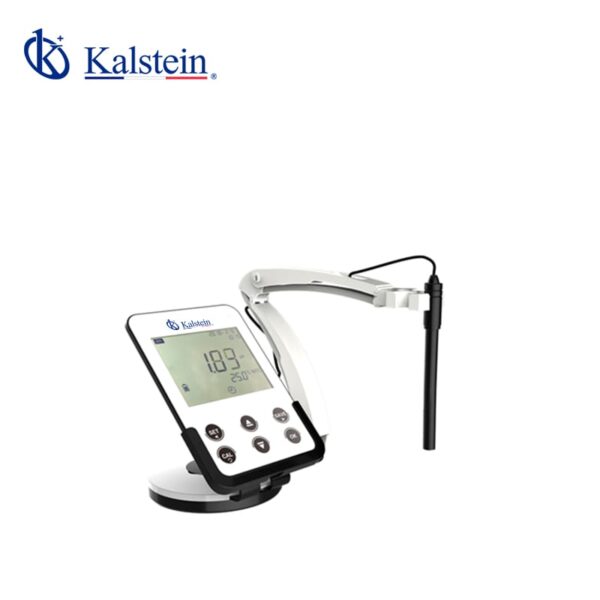

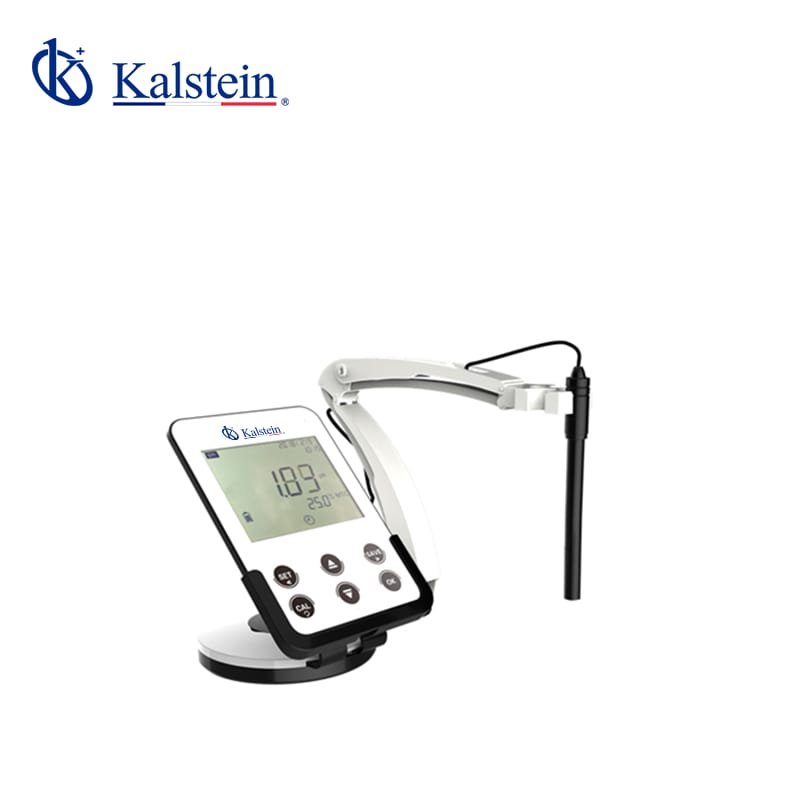

Benchtop DO / Conductivity Meter YR01837

Manufacturer: Kalstein

Description

High-accuracy multiparameter water quality meter contains 13 options, the meter is suitable for measuring the conductivity, TDS, salinity, resistivity and dissolved oxygen.

Conductivity/TDS/Salinity/Resistivity Modes:

• Multiparameter water quality meter is equipped with a large backlit LCD display.
• 1 to 5 points calibration with automatic recognition for conductivity standards.
• Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), TDS factor, linear
and pure water compensations, seawater and practical salinity measurement modes.

Dissolved Oxygen Mode:

• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
• Salinity and barometric pressure compensations eliminate the measurement error.

Other Features:

• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-Read function senses and locks the measurement endpoint.
• Calibration due alarm prompts user to calibrate the meter regularly.
• Setup menu allows setting the number of calibration points, stability criteria, temperature
unit, date and time, auto-power off, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface for data transfer and timed interval readings.

Model YR01837
Conductivity
Range 0.01 to 20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm
Resolution 0.001, 0.01, 0.1, 1
Accuracy ±0.5% F.S.
Calibration Points 1 to 5 points
Calibration Solutions 10µS, 84µS, 1413µS, 12.88mS, 111.8mS
Temperature Coefficient Linear (0.0 to 10.0%/°C), pure water
Reference Temperature 20/25°C
Cell Constant K=0.1, 1, 10 or custom
TDS
Range 0.00 to 10.00, 100.0, 1000ppm, 10.00, 200.0ppt
Resolution 0.01, 0.1, 1
Accuracy ±1% F.S.
TDS Factor 0.1 to 1.0 (default 0.5)
Salinity
Range 0.00 to 80.00ppt, 0.00 to 42.00psu
Resolution 0.01
Accuracy ±1% F.S.
Resistivity
Range 0.00 to 20.00MΩ
Resolution 0.01
Accuracy ±1% F.S.
Dissolved Oxygen
DO Range 0.00 to 20.00mg/L
Resolution 0.01, 0.1mg/L, selectable
Accuracy ±0.2mg/L
% Saturation of Oxygen 0.0 to 200.0%
Resolution 0.1, 1%, selectable
Accuracy ±2.0%
Calibration Points 1 or 2 points
Pressure Correction 60.0 to 112.5kPa/450 to 850mmHg, manual
Salinity Correction 0.0 to 50.0g/L, manual
Temperature
Range 0 to 105°C/32 to 221°F
Resolution 0.1°C/0.1°F
Accuracy ±0.5°C/±0.9°F
Offset Calibration 1 point
Calibration Range Reading ±10°C
General Specifications
Temperature Compensation 0 to 100°C/32 to 212°F, manual or automatic
Stability Criteria Low or high
Calibration Due Alarm 1 to 31 days or off
Memory Stores up to 500 data sets
Output USB communication interface
Connector 6-pin nimi-DIN, 3.5mm jack socket
Display Custom LCD (125×100mm)
Power DC5V, using AC adapter, 220V/50Hz
Dimensions 210(L)×188(W)×60(H)mm
Weight 1.5kg
Order Code Accessories
YR01837
CON-1 conductivity electrode
DO100 dissolved oxygen probe
TP-10K temperature probe
Conductivity standards 84µS/cm, 1413µS/cm, 12.88mS/cm
DO electrolyte solution
DO membrane cap
USB cable
DC5V power adapter
YR01837-1
K10 conductivity electrode
DO100 dissolved oxygen probe
TP-10K temperature probe
Conductivity standards 84µS/cm, 1413µS/cm, 12.88mS/cm
DO electrolyte solution
DO membrane cap
USB cable
DC5V power adapter

Additional information

Weight 1,7 kg
Dimensions 32 × 27 × 20 cm
Modelo

YR01837, YR01837-1
