Biological Safety Cabinet Class II A2 YR0090B (SS) // YR0090E (SS)

Manufacturer: Kalstein

Description

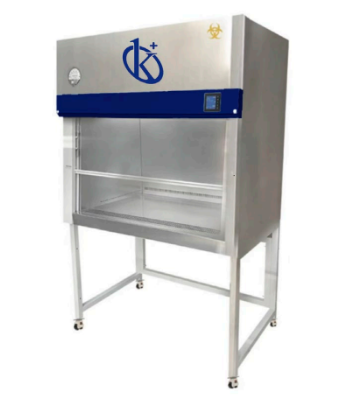

Get to know more about Kalstein’s new Full Stainless Steel Biosafety Cabinet, with front window operation port. The operator can operate in the safety cabinet through the front window operation port to protect personnel, products and environment during operation.

Working environment

(1) Only applicable to indoor.
(2) Ambient temperature: 15 35 “C.
(3) Relative humidity: < 75%.
(4) Atmospheric pressure range: 70kPa 106kPa.
(5) Power supply: 220V 50Hz.

Essential Parameters

1) Type A2, 30% efflux, 70% internal recycle.
2) Height from table top to ground: 850mm (size can be customized and modified2.according to requirements)
Biosafety.
(1) Personnel safety: tested by potassium iodide (KI) method, the protection factor of the front window operating opening should not be less than lX 105.
(2) Product safety: bacterial count < 5 CFU/time.
(3) Safety of cross contamination: bacterial count <2CFU/time.

Technical Specification
Parameter / Model YR0090B(SS) YR0090C(SS) YR0090D(SS) YR0090E(SS)
Rotated Voltage 220 V
Roted Frequency 50HZ
Number Of People SINGLE PERSON DOUBLE
Overall Dimension 1000*765*2000MM 1200*765*2000MM 1500*765*2000MM 1800*765*2000MM
Operating Space 800*630*700MM 1000*630*700MM 1300*630*700MM 1600*630*700MM
Rated Power 1100W 1800W
Total System Exhaust 360M3/h 500m3/h
Uv Lamp Power 30w 40w
Fluoroscent Lamp Power 12w*2(LED) 16W*2 (LED)
Average Falling Wind Speed 0.33+-0.25M/S
Average Suction Wind Speed 0.53+-0.25M/S
Filtrtion Efficiency HEPA (ULPA) High Efficiency Filter, FOR 0.3 U M (0.12) Particle Filtration Efficiency > 99.999% (99.9995%)
Noise <67 Db (A)

Additional information

Weight N/A
Dimensions N/A
Model

YR0090B(SS), YR0090C(SS), YR0090D(SS), YR0090E(SS)
