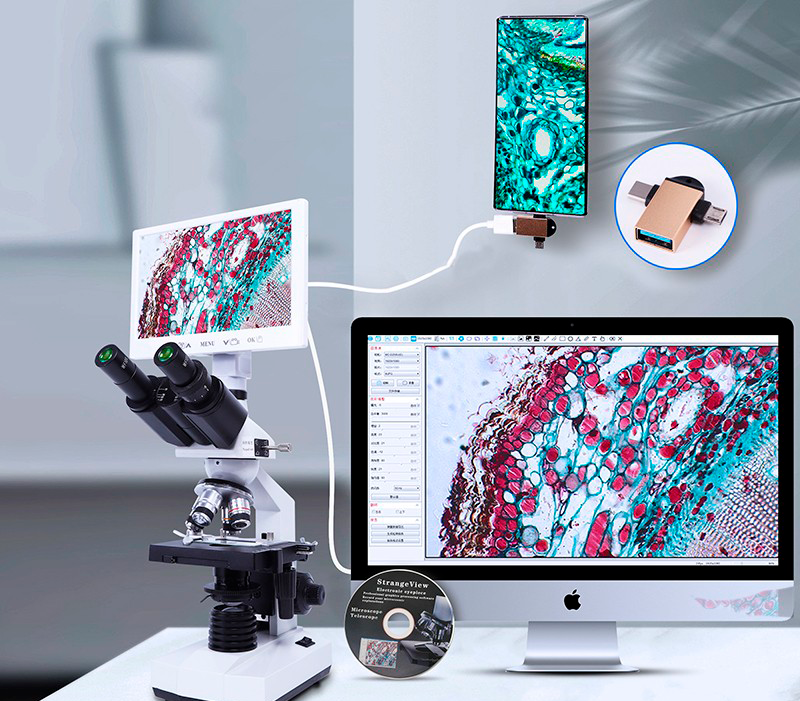

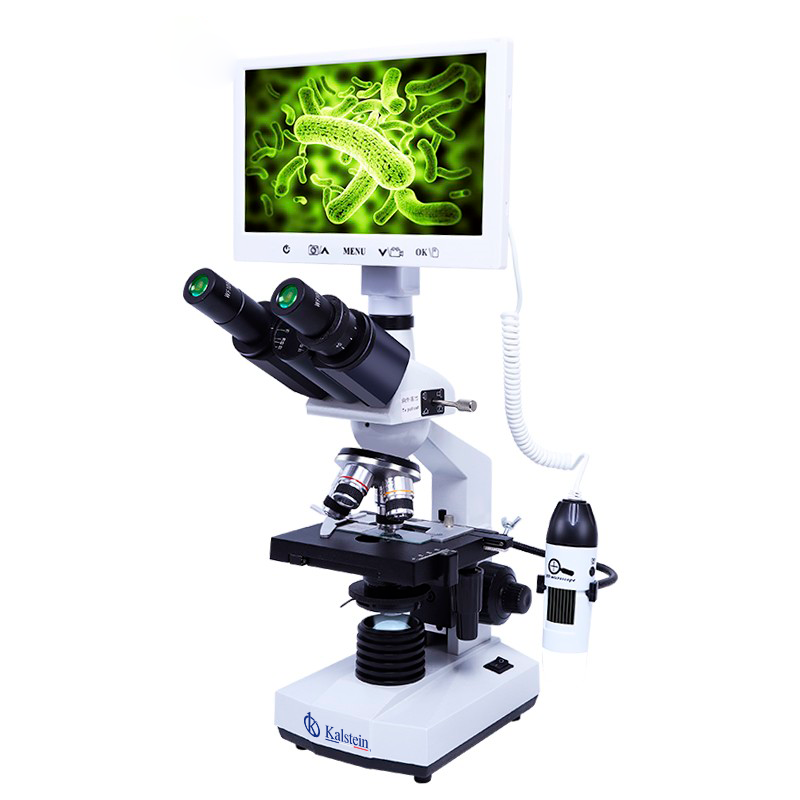

Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786
Manufacturer: Kalstein
Manufacturer: Kalstein
Product Description
- Teaching Head, WF10x, WF16x, Quarduple, Ach. 4x10x40x100x, Mechanical Stage 115x125mm, Coaxial Focusing, LED, With 10 Prepared Slides, 0.3x C-Mount, With Experiment Kit, Pack In Hand Carry Case+Carton
- 7″ LCD 2.0M, 30fps, TF Card Max 32G, USB Output, Measuring Software Support Win/iMac
Technical Specifications
| Model | YR05784 | YR05785 | YR05786 | YR05783 | |
| Head | Teaching Head, 45°+90° Inclined, 360° Rotatable | o | o | ||
| Binocular Head, 30° Inclined, 360° Rotatable | |||||
| Trinocular Head, 30° Inclined, 360° Rotatable | o | o | |||

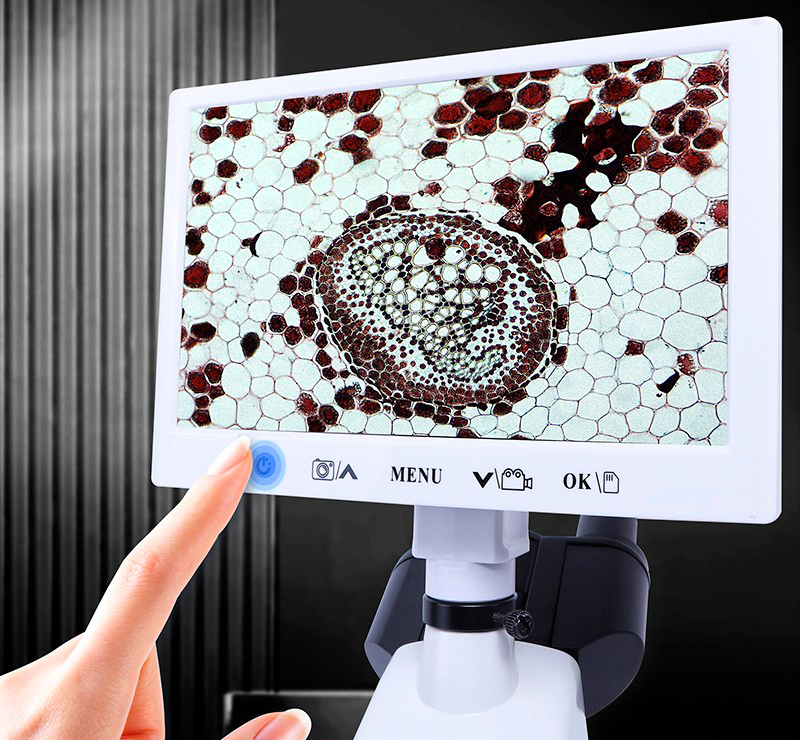

| LCD Camera | 7″IPS LCD Screen Resolution 800×480 | ||||
| Sensor | 1/2.75″CMOS | ||||
| Resolution | 2.0M 1920x1080p, With 0.3x C-Mount | ||||
| Pixel Size | 2.8×2.8um | ||||
| Frame Rate | 30 fps | ||||
| Output | USB 2.0, Output to LCD, PC or Mobile Phone | ||||
| Power | DC5V/2A, Power Port 3.5/1.35 DC | ||||
| Storage | Micro SD Card Slot, Support Class 10 Max 32G | ||||
| LCD Menu | One Key Switch Image From Main Camera & Hand-held Camera | ||||
| One Key Take Photo, Video, Record, Save to SD Card | |||||
| Set Color, Contrast, White Balance Auto/Manual Adjust | |||||
| Set Photo/ Video Resolution Adjust, Mic On/Off to Record Voice With Video | |||||
| Set Date, Time | |||||
| Choose Language: Chinese, Tranditional Chinese, English, Japanese, France, Germany, Korea, Russia, Italy, Portuguese, Spanish, Arabic | |||||
| Playback Photo, Video | |||||
| PC Software | CD With Measuring Software Strange View, Support Win/iMac Computer, Support Language Chinese, English, Russia, Ukrian | ||||

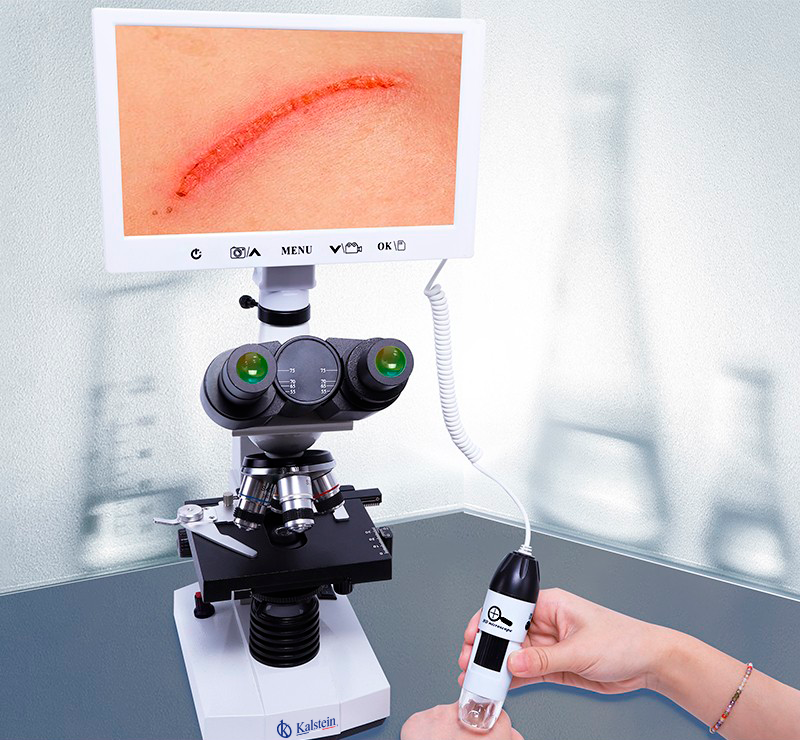

| Hand-held | USB Portable Digital Microscope 1.3M, 1.5x-25x | – | o | – | o |
| Eyepiece | WF10x, WF16x | ||||
| Nosepiece | Quadruple Nosepiece, Ball Bearing Inner Locating | ||||
| Objective | Achromatic 4x,10x,40x(s), 100x(s, oil) | ||||
| Working Stage | Double Layer Mechanical Stage 115*125mm | ||||
| Focusing | Coaxial Coarse & Fine Focus Knob, Coarse Focusing Range 20mm | ||||
| Condenser | Abbe Condenser N.A.1.25, With Iris Diaphragm Filter | ||||
| Light Source | LED, Brightness Adjustable | ||||
| Accessory | Prepared Slide 10pcs in Box, | ||||
| Experiment Kit, | |||||
| Mobile Phone Connector | |||||
| Power Adapter | |||||
| Power Cord | |||||
| USB Cable | |||||
| Software CD | |||||
| Packing | Hand Carry Box + Master Carton | ||||
Additional Information
| Weight | 5 kg |
|---|---|
| Dimensions | 30 × 20 × 40 cm |
| Model | YR05783, YR05784, YR05785, YR05786 |
