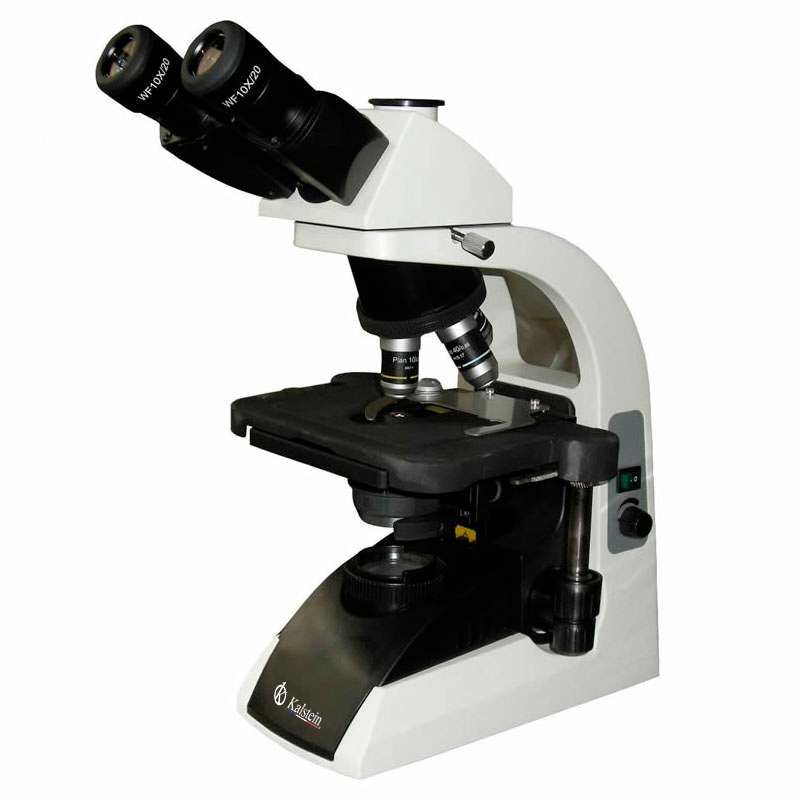

Binocular Laboratory Microscope YR0243 // YR0244



  • Infinity Achromatic Objective 4x,10x,40x,100x
  • Abbe Condenser N.A.1.25, Center Adjustable
  • Halogen Lamp 12V20W, Brightness Adjustable
  • Low Position Coaxial Coarse & Fine Focus System
  • Seidentopf Binocular (Trinocular) Head, 30° Inclined, 360° Rotatable
Technical Specifications
Model YR0243 YR0244

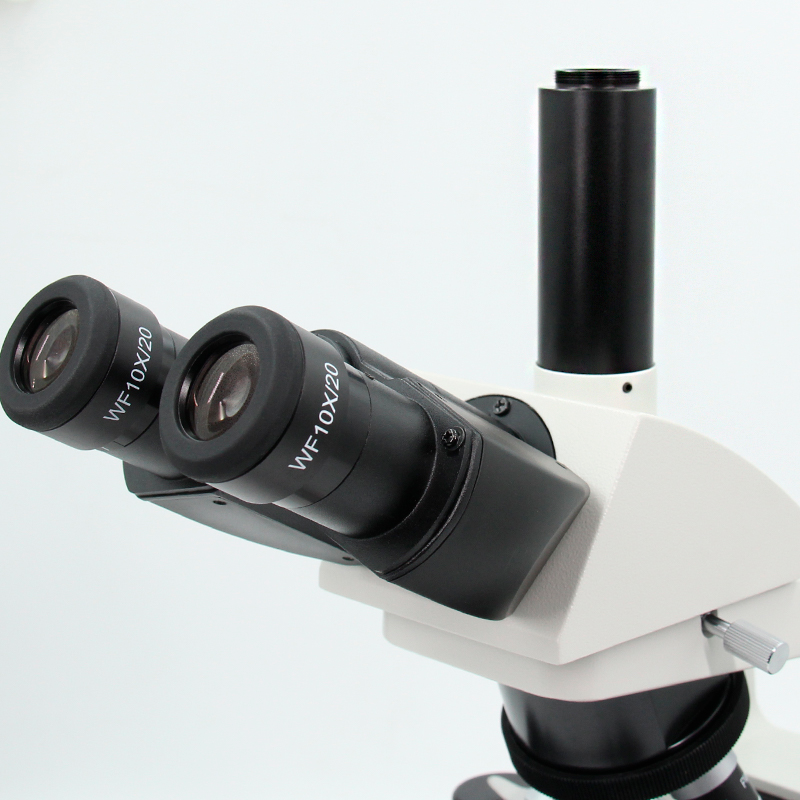

Head Seidentopf Binocular Head, 30° Inclined, 360°Rotatable,Interpulillary Distance 48-75mm
Seidentopf Trinocular Head, 30° Inclined, 360°Rotatable,Interpulillary Distance 48-75mm
Eyepiece Wide Field WF10x/20mm, Eyepiece Tube Dia.30mm, 2 pcs
Nosepiece Backward Quadruple Nosepiece
Optical System Infinity Optical System

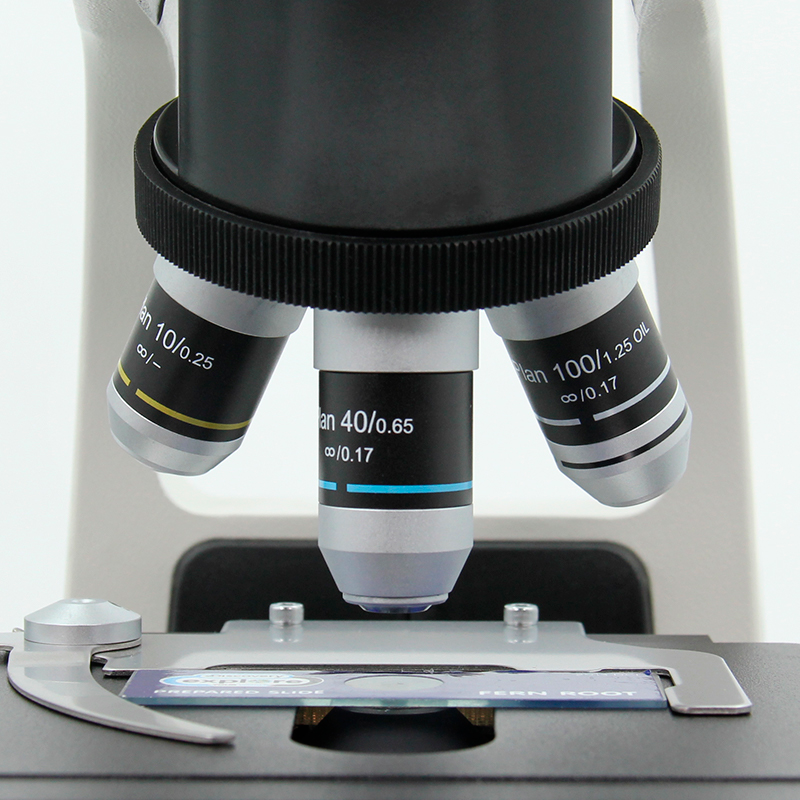

Objective Infinity Plan Achromatic 4x/0.10, 10x/0.25, 40x/0.65(S),100x/1.25(S,Oil)
Magification 40x-1000x

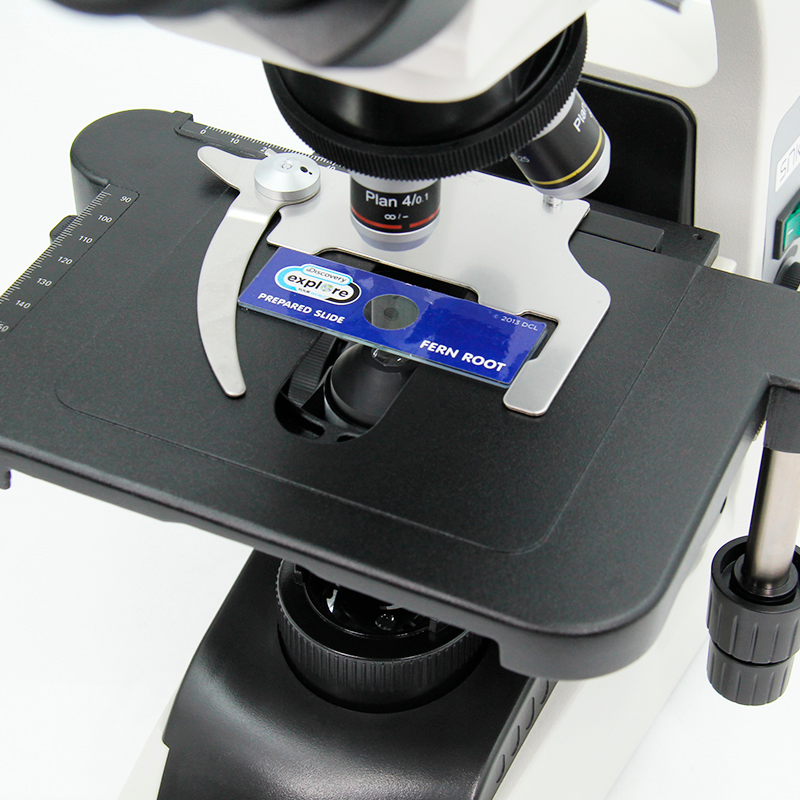

Stage Double Layer Mechnical Stage, 230x150mm, Moving range 54x78mm, Double Slide Holder, Low PositionX/Y Coaxial Control Knob, With Travel Guide To Aviod Scratch
Focusing Low Position Coaxial Coarse & Fine Focusing.
Fine Focusing Scale 0.002mm, Moving Range 25mm, With Safety Stop

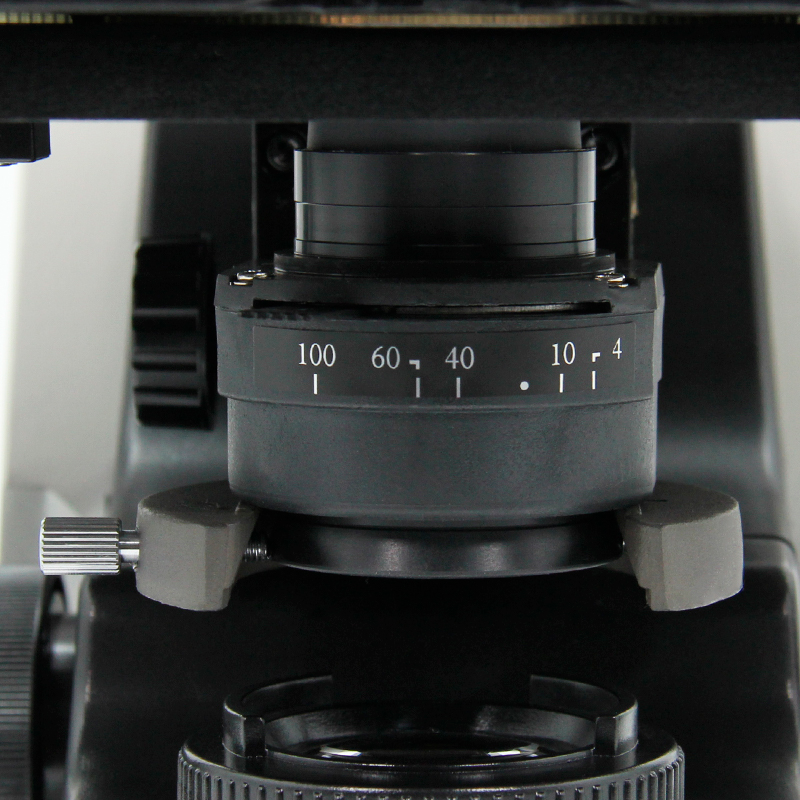

Condenser  N.A.1.25 Abbe Condense, Iris Diaphargm,With Filter Holder,Up/Down Range 25mm, Center Adjustable,With Filter Holder
Filter Green
Light Source Halogen Lamp 12V/20W, Brightness Adjustable
Note:”●”In Table Is Standard Outfits
Items A12.1010 Laboratory Biological Microscope Optional Accessories
Eyepiece Wide Field WF15x/16mm, Eyepiece Tube Dia.30mm YR0244-op1
Wide Field WF20x/12mm, Eyepiece Tube Dia.30mm YR0244-op2
Objective Infinity Plan Achromatic 20x YR0244-op3
Infinity Plan Achromatic 60x YR0244-op4
Nosepiece Backward Quintuple Nosepiece YR0244-op5
Illumination Kohler Illmination YR0244-op6
Adapter Photo Adapter YR0244-op7
C-Mount 0.4x YR0244-op8
C-Mount 0.5x YR0244-op9
Dark Field Dark Field Condense, Dry YR0244-op10
Dark Field Condense, Immersion YR0244-op11
Polarizing Simple Polarizing Kit YR0244-op12
Phase Contrast Phase Contrast Set YR0244-op13
Fluorescent EPI-Fluorescent Kit YR0244-op14

Additional information

Weight N/A
Dimensions N/A

YR0243, YR0244
