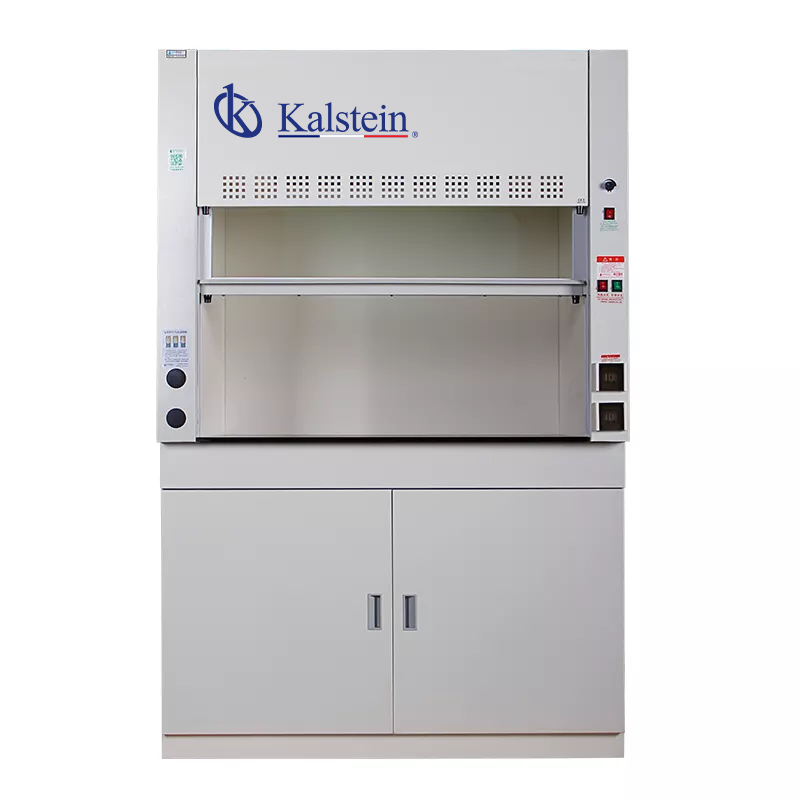

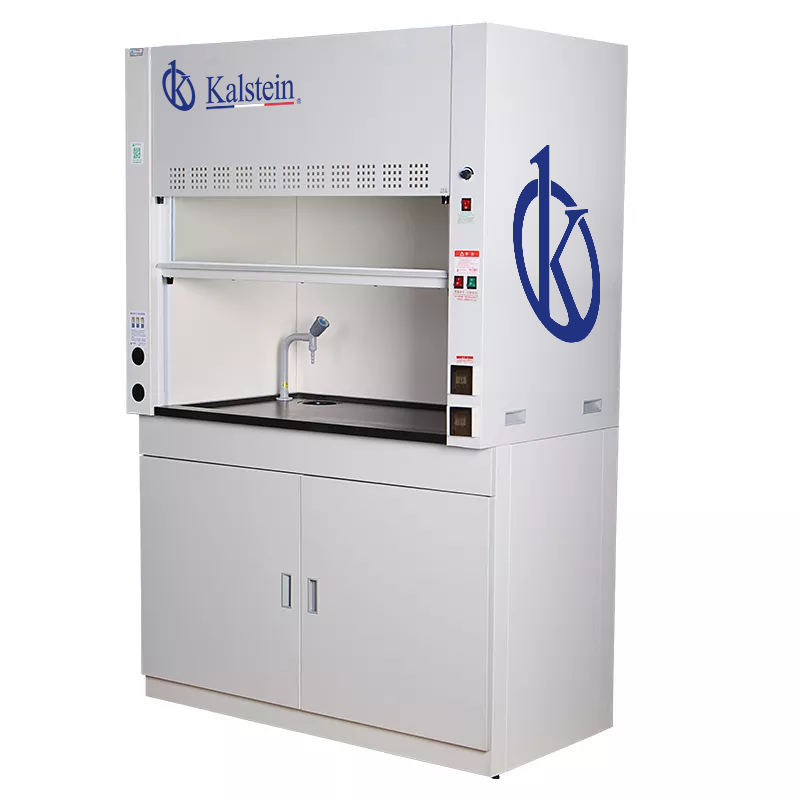

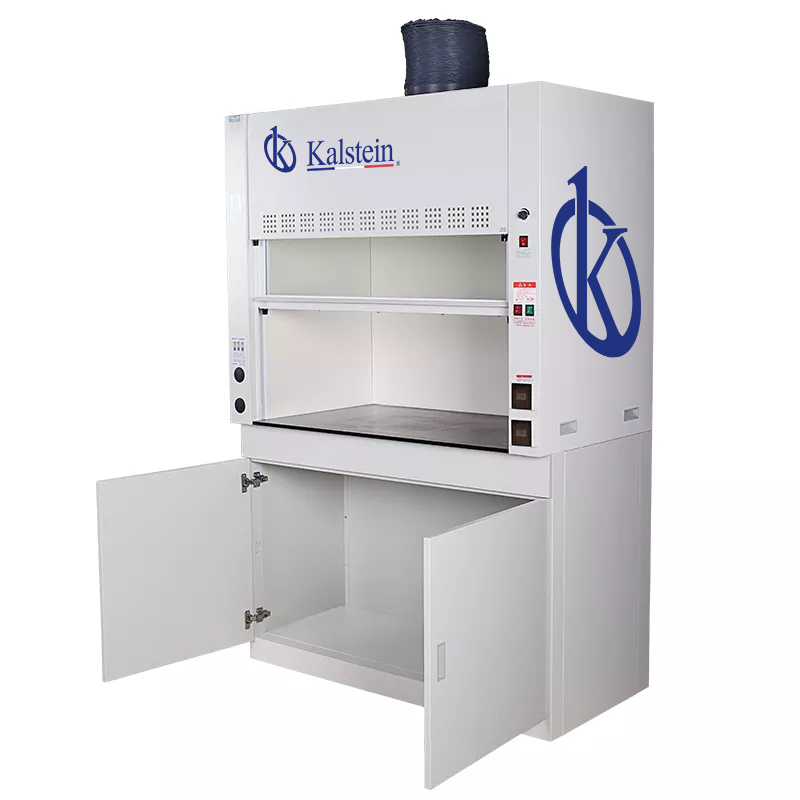

Epoxy-Coated Steel Basic Chemical Laboratory Fume Hood YR05813 // YR05816
Manufacturer: Kalstein
Product Description
- Front Panel
- Liner and guide baffles 5mm thick anti melamine board
- Window: 5mm thick tempered glass
- Laboratory Dedicated PP cup
- Built-in drain pipe
- Lower Side Plate
- Lower Back Plate
- Built In Axial Fan, Air Collector and anti-corrosion hose
- With wind Regulator
- Upper side panel (1.2mm thcik galvanized steel plate. epoxy sprayed outside)
- Built in LED tube
- Fan and lamp Switch
- Multifunctional splash proof socket
- 12.7m corrosion proof solid core, physical and chemical board, mesa
- Door frames and door panels
Technical Specifications
| Model | YR05813 | YR05814 | YR05815 | YR05816 | |
| External Size (W*D*H) (mm) | 800*650*1900 | 1000*650*1900 | 1200*650*1900 | 1500*650*1900 | |
| Internal Size (W*D*H) (mm) | 600*600*750 | 800*600*750 | 1000*600*750 | 1300*600*750 | |
| Work Surface Height | 800mm | ||||
| Max Opening of window | 750mm | ||||
| Air Velocity/Exhaust air volume | 0.4-0.6m/s,800-1000m³/h | ||||
| Noise | ≤60dB | ||||
| LED Lamp | 10W*1 | ||||
| Blower | Built-in axial flow blower;Speed adjustable. | ||||
| Front Window | Manual,5mm toughened glass,height adjustable. | ||||
| Power Supply | AC220V±10%,50/60Hz; | ||||
| Consumption | 100W | ||||
| Material | Main Body | 1.2mm thickness cold-rolled steel | |||
| with epoxy resin powder coating. | |||||
| Inner Side | 5mm thickness compact,resistant | ||||
| to strong acid and alkali. | |||||
| Work Table | Chemical resistant phenolic resin, | ||||
| thickness 12.7mm. | |||||
| Standard Accessory | LED lamp,Built-in axial flow blower with speed adjustable. | ||||
| Waterproof socket*2 | |||||
| 3 meter PP duct,Diameter:250mm | |||||
| Optional Accessory | epoxy resin board or ceramic board.,Water tap,Gas tap,Water Sink | ||||
| Outer centrifugal blower(300W),resistant to strong acid,alkali. | |||||
| Gross Weight | 110 | 110 | 115 | 120 | |
Additional Information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | YR05813, YR05814, YR05815, YR05816 |
