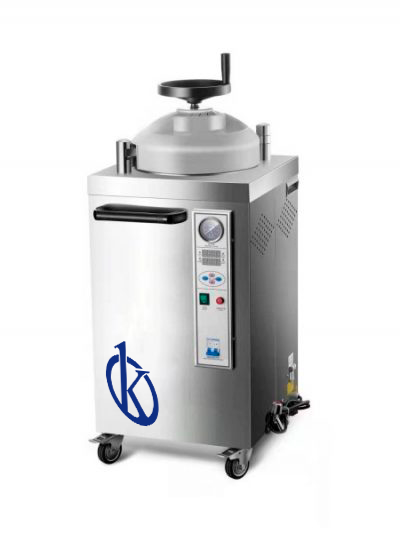

Hand Wheel Type Autoclave Vertical Sterilizer YR05661 // YR05664


Product Description

  • Fully stainless steel 304 material.
  • Microcomputer control heating, air release, sterilization, pressure, temperature, time and steam release.
  • LED digital display sterilization temperature and time.
  • Hand wheel quick open door.
  • Double safety interlocking system to ensure safe.
  • Tempered glass anti-scald protection.
  • Sound-light alarm when sterilization finished.
  • Drying function and printer can be added if need.
Safety Protection Device
  • Safety protection of water lacking.
  • The program will be stopped if water level lower than the low limit.
  • The buzzer alarms when a cycle of operation is completed.
  • Over temperature & over pressure auto-protection.
  • Over current protector.
  • Door safety interlock device.
  • Safety valve of auto release against over-pressure.
Technical Specifications
Model YR05661 YR05662 YR05663 YR05664
Working pressure 0.22Mpa
Working temperature 100 – 134℃
Sterilization time 0-9999 min
Accuracy of temperature display 0.1℃
Heat average ≤±1℃
Type Vertical Steam Autoclave
Control Microprocessor
Display Digital display
Door Hand wheel quick open door
Steam generator Stainless steel 304
Material Fully stainless steel 304
Loading 1 pcs stainless steel drum
Language English
Voltage 110-220V. 50/60Hz
Optional  Drying function, Printer
Chamber Size(mm) 35L / Ø318×420 50L / Ø318×530 75L / Ø388×480 100L / Ø388×630
Outer Size(mm) 500×500×900 520×500×1000 570×570×1100 570×570×1200
Packing Size(mm) 550×540×1000 570×550×1090 620×620×1210 620×620×1310
G.W. / N.W. 65/44 kg 73/49 kg 91/71 kg 103/74 kg
Power 2.5 kw 2.5 kw 3.5 kw 4.0 kw

Additional Information

Weight N/A
Dimensions N/A

YR05661, YR05662, YR05663, YR05664
