Description

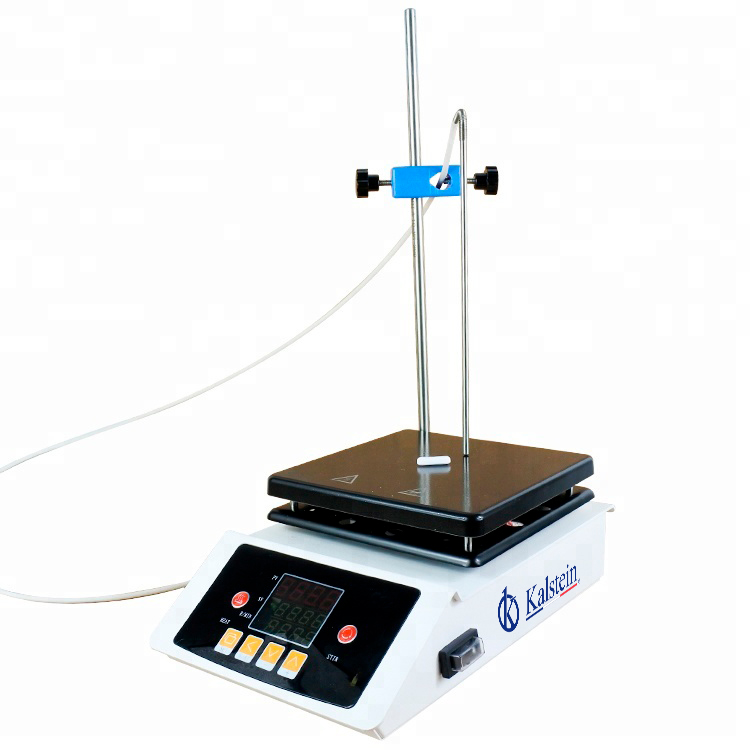

YR Series are new Digital Hotplates laboratory magnetic stirrer mixer with Heater made of Ceramic top plate , PID Temperature control and digital display which offers excellent chemical resistance .
Product Features
White cermic coated top plate provide excellent chemical resistance, thermal-proof , and corrossion resistance, bright white color ceramics coated plate enhance sample visibility.
- Fixed safety circuit of400 °C
- Smooth acceleration of stirring speed ensures no spillage.
- Digital display for temperature reduce, add and set
- Heat only, stir only or heat and stir together function
- Electronic speed control for constant speed even during change in load
- High magnetic adhesion
- Various Sizes of the top flexible choice. four sizes , black and white ceramic are all available
| Model | YR02938 |
| Top Plate Dimension (mm) | 180 x 180 |
| Top Plate Dimension(Inch) | 7.09×7.09 |
| Temperature Control | PID Auto control . |
| Top Plate Shape | Round or Square |
| Top Plate Material | Ceramic |
| Temperature Range for machine | Ambient to 400 degree. |
| Max Temperature for top plate | 325 degree |
| Top Material | White ceramics and Black Ceramic are Both available . |
| Temperature Display (°C ) | Digital Display |
| Temperature control | PID Auto control |
| Temperature accuracy | |
| Thermocouple probe /sensor type | PT100 , with inner and outer thermocouple . |
| Stir Speed | 100- 1800 RPM |
| Stir Display | Digital display |
| Stir speed accuracy | |
| Permissible Ambient Temperature | Ambient Temperature to 40°C |
| Voltage | 160 – 240V , or 110- 130V. |
| Heating Power supply (w) | 550 |
| Motor Power supply | 40 W.DC 20 |
| Machine power supply | 600 |
| Stirring Flask Capacity (ml) | 50ML-5L |
| Overall Dimensions (mm) ( L × W × H ) |
391 x 245 x 120 |
| Packing Dimension (mm) | 440 x 290 x 170 |
| Shipping Weight (kg) | 5.1 |
| Shell material | Time molding waterproof and dustproof shell with Anti-static paint |
