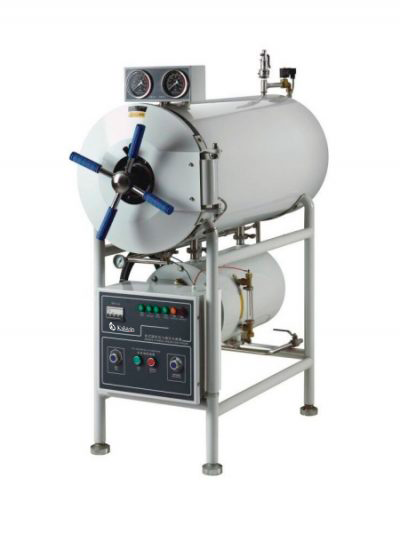

Horizontal Cylindrical Pressure Steam Autoclave YR05635 // YR05639



  • Microprocessor controlled, water adding, heating up, sterilizing, drying, exhaust process are fully automatic.
  • Drying function, suitable for dressing drying.
  • The power will be cut off automatically, and cut-off water and alarm when machine lacks of water.
  • The door opening mechanism cannot be operated until pressure in the chamber is reduced to 0.027Mpa. Itcan’t start if door doesn’t close completely.
  • The safety valve will be open automatically, when the inner pressure over 0.24 Mpa and the steam will be exhausted to the water tank.
  • The chamber, door, jacket, water tank aremade of stainless steel 304.
  • Built-in steam generator, water tank, and water level indicator.
  • With two pressure temperature gauges, real-time display of the temperature and pressure of the inner chamber and jacket.
  • The timer starts only after the pre-set temperature is reached, ensuring complete sterilization.
  • Automatic air venting device discharges cool air from chamber to obtain effective saturated steam.
  • Equipped with PT/TT test port
Safety Protection System
  • Safe protection of water lacking.
  • The program will be stopped if water level lower than the low limit.
  • The buzzer alarms when a cycle of operation is completed.
  • Over temperature & over pressure auto-protection.
  • Over current protector.
  • Door safety interlock system.
  • Electric safety protective device.
  • Automatic release safety valve
  • Emergency exhaust valve.
Technical Specifications
Model YR05635 YR05636 YR05637 YR05638 YR05639
work pressure 0.22Mpa
Work temperature 134℃
Working temperature range 105-134℃
sterilization time 0 – 60 minutes
Drying time 0 – 60 minutes
average heat ≤±1℃
Chamber size (mm) 150L / Ø440×1000 200L / Ø500×1000 300L / Ø600×1080 400L / Ø700×1100 500L / Ø700×1300
Outer size (mm) 1400×600×1300 1400×670×1650 1400×770×1780 1430×880×1830 1800×900×1820
Packing size (mm) 1550×750×1850 1560×820×1850 1680×920×2100 1600×1050×2100 1850×1050×2100
GW / NW 320/240kg 350/260kg 465/365kg 530/420kg 580/470kg
Energy 9kw 9kw 12kw 18kw 18kw
