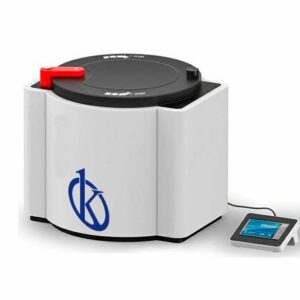

Microwave Digestion System YR04953 // YR04956

Manufacturer: Kalstein

Manufacturer: Kalstein

This product is currently out of stock and unavailable.

Product Description

YR04953 // YR04956 series is a new designed microwave digestion system. Different from the previous modelย  seriesย  is newly designed and fully upgraded with higher performance and safer protection system.
The smart design and perfect performance make it warmly welcomed by users worldwide.

Features
  • Optional vessel quantity, up to 12 vessels to meet different digestion requirements.
  • Vertical design for even distribution of microwave.
  • Real-time monitoring for both temperature and pressure of each vessel.
  • Contactless sensor monitoring with no burst disk design saves consumables cost and maintenance cost.
  • Imported vessel material for both sample vessel and protection vessel highly ensures safety.
  • 7 inch color Touch screen with user-friendly interface for easy operation.
  • Imported CFRP outer shell material with high strength ensures impact resistance.
  • Pre-installed general standard methods, users can also create, save, modify and delete the method.
  • 316L industrial stainless steel tank with multilayer teflon coating avoids acid corrosion, also improved cooling efficiency.
Technical Parameters
Model YR04953 YR04954 YR04955 YR04956
Vessel Quantity 6 8 10 12
Temperature Monitoring System Contactless IR Sensor Temperature Monitoring
Each Vessel Temperature Controlled
Temperature Controlling Range: 50~400โ„ƒ
Temperature Accuracy: ยฑ0.1โ„ƒ
Display Accuracy: ยฑ0.1โ„ƒ
Pressure Monitoring System Contactless Sensor Pressure monitoring
Each Vessels Pressure Controlled
Pressure Controlling Range: 0~15MPa
Pressure Accuracy: ยฑ0.01MPa
Display Accuracy: ยฑ0.01Mpa
Vessel Volume 100mL
Sample Vessel Imported TFM
Material
Rotation One Direction 360ยฐ continuous rotating
Microwave Tank 316L stainless steel tank with corrosion-proof coating
Microwave Power 0-1000W (Adjustable)
Microwave Leakage <5mw/cm2
Air Exhaust High power corrosion-proof air blower
Power AC 220Vยฑ10%, 10A, 50/60Hz
Dimension 490ร—560ร—630mm๏ผˆLร—Wร—H๏ผ‰
Weight 47KG
Display 7 inch Touch Screen
Protection Vessel Material Peek+Glass Fiber

Additional Information

Weight N/A
Model

YR04953, YR04954, YR04955, YR04956
