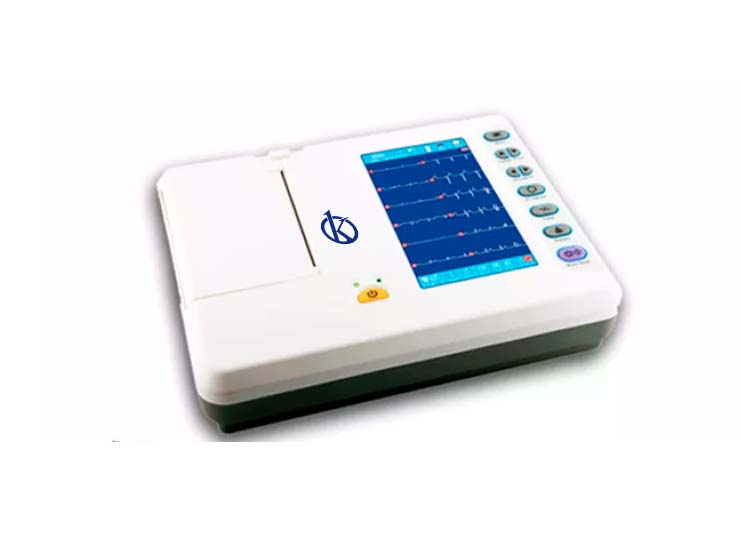

This new 6-channel YR ECG gives you the power of advanced, easy-to-use technologies, multiple forms of data management...
The 12-channel ECG machine is an electrocardiograph that can simultaneously collect 12-lead ECG signals...
The electrocardiogram is commonly used to detect abnormal heart rhythms and to investigate the cause of chest pain...

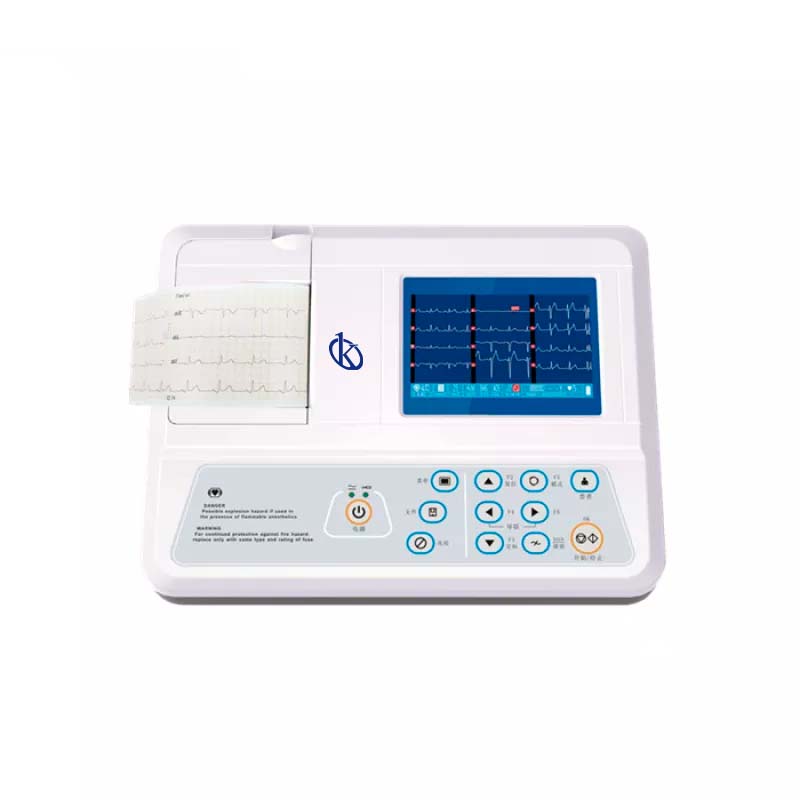

As the name suggests, the 3-channel ECG device prints 3 waveforms/channels at a time. In the 3-channel devices...
The 12-channel ECG machine is an electrocardiograph that can simultaneously collect 12-lead ECG signals and print ECG waveforms with a thermal printing system. The electrocardiogram is commonly used to detect abnormal heart rhythms and to investigate the cause of chest pain. An electrocardiogram records the electrical activity of the heart. The heart produces small electrical impulses that travel through the heart muscle to cause the heart to contract. These impulses can be detected by the ECG machine.
Model | YR05159 |
Elements | specification |
Characteristics | 7 ″ screen,
touch screen Supports Ecg analysis capabilities |
Guide | 12 standard conductors |
prospect acquisition | synchronously 12 leads |
Input circuit | Floating; Defibrillator protection circuit |
Input impedance | ≥50MΩ |
Input circuit current | ≤0.0.05μA |
Record mode | Automatic: 3CH × 4 + 1R, 3CH × 4,
3CHx2 + 2CHx3,3CHx2 + 2CHx3 + 1R, 6CHX2; Manual: 3CH, 2CH, 3CH + 1R, 2CH + 1R; Rhythm: any selectable lead. |
Filter | EMG filter: 25Hz / 30Hz / 40Hz / 75Hz / 100Hz / 150Hz DFT filter: 0.05Hz / 0.15Hz AC filter: 50Hz / 60Hz |
CMRR | > 100dB |
Patient current leak | <10μA |
Input circuit current | <0.05 µA |
Frequent response | 0.05Hz ~ 150Hz (-3dB) |
Sensitivity | 2.5mm / mV, 5mm / mV, 10mm / mV, 20mm / mV |
Anti-baseline drift | Automatic |
Constant time | ≥3.2s |
Noise level | <15μVp-p |
Paper speed | 12.5mm / s, 25mm / s, 50mm / s |
Recording mode | Thermal printing system |
Paper specification | Sun-7031: 80mm x 20m paper roll Sun-7062: 120mm x 20m paper roll |
LCD screen | 7 ″ graphic LCD |
Safety rating | IEC60601-1 class I, type CF |
Power supply | AC: 100 ~ 240V, 50 / 60Hz, 30VA ~ 100VA |
Fuse | AC220V ± 10% 2 * Φ5 × 20mm, T2A / 250V AC time delay |
