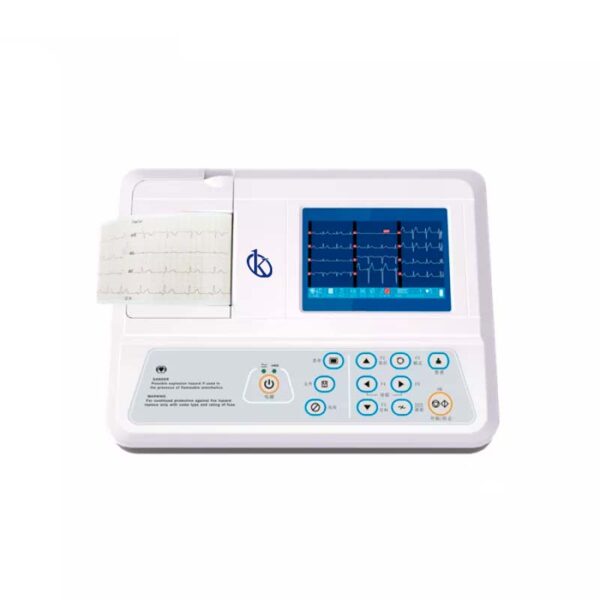

12-lead ECG monitor USB / RS232 interface YR05160

Manufacturer: Kalstein

Product Description

The 12-channel ECG machine is an electrocardiograph that can collect 12-lead ECG signals simultaneously and print ECG waveforms with thermal printing system. The EKG is commonly used to detect abnormal heart rhythms and to investigate the cause of chest pains. An EKG records the electrical activity of the heart. The heart produces small electrical impulses that travel through the heart muscle to cause the heart to contract. These impulses can be detected by the ECG machine.

Technical description
Model YR05160
Guide 12 standard conductors
Calibration voltage : 1mV ± 2%
Voltage tolerance ≥ ± 500mV
Constant time ≥3.2s
Frequent response 0.05 ~ 160Hz (-3db)
Noise level <15μVp-p
Sensitivity valve ≤20μV
Sensitivity 2.5, 5, 10, 20mm / mV
Interchannel interference ≤0.5mm
Paper speed 6.25, 12.5, 25, 50mm / s (± 3%)
Input dynamic range ± 10Vpp
Filter: AC Filter 50Hz / 60Hz

Additional Information

Weight 6 kg
