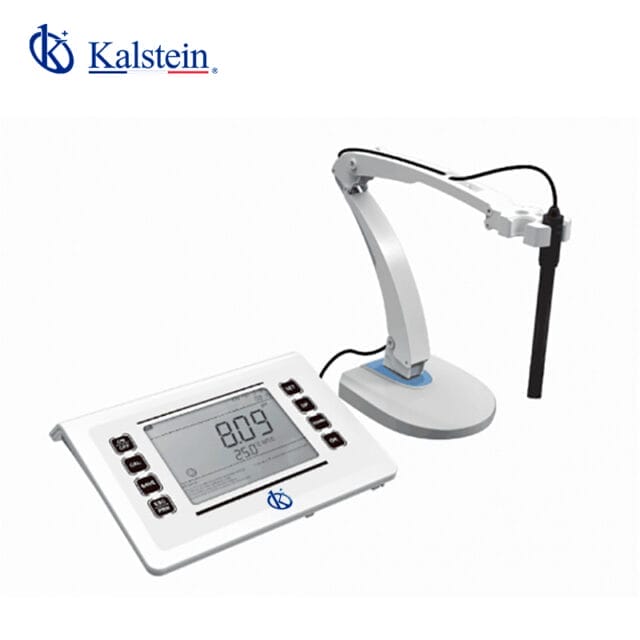

Benchtop Conductivity / TDS / Salinity / Conductivity Ash Meter YR01827

ManufacturerKalstein

Description

  • 6.5-inch LED screen with concise and friendly-use interface.
  • Built-in microprocessor chip has Intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless printing, and self-diagnosis information, etc.
  • It supports wireless bluetooth printing. Real-time data transfer to mobile phone via bluetooth is optional.
  • Smart electrode status display to ensure accurate use.
  • Adopt advanced conductivity measurement technology, with conductivity electrode (K=1), it can meet measuring accuracy requirement for range of 0.5uS/cm ~ 200mS/cm.
  • Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full range.
  • Omron long lasting and light touch key can be used more than 100,000 times.
  • Auto recognition of 25 buffers with three kinds of options: Europe & USA, NIST and China. Auto recognition of 8 conductivity standard solution with 2 kinds of options: Europe & USA, and China.
  • Can store 1000 sets of test data, which can be saved and transferred to USB memory stick and opened with Excel.
Technical Specifications
Model YR01827
pH
Measuring range (-2.00 ~ 20.00)pH
Resolution 0.1/0.01 pH
Accuracy ±0.02pH
Auto calibration 1, 2, 3 point
Buffer Europe & USA, NIST, China standards
Input current ≤2×10 -12A
Input impedance ≥1×10 12Ω
Stability ±0.01 pH/3h
Temp. compensation (0 ~ 100)°C, auto or manual
mV ORP
Measuring range -1999.9mV ~ 0 ~ 1999.9mV
Resolution 1 mV
Accuracy ±0.1% FS
Cond.
Measuring range
Conductivity:
(0.00~20.00)μS/cm, (20.0~200.0)μS/cm
(200~2000)μS/cm, (2.00~20.00)mS/cm
(20.0~200.0)mS/cm
(200~2000)mS/cm (K=10)
TDS: (0 ~ 100)g/L
Salinity: (0 ~ 100)ppt
Resistivity: (0 ~ 100)MΩ·cm
Resolution 0.01/0.1/1μS/cm, 0.01/0.1/1mS/cm
Accuracy Electrode: ±0.5% FS, Meter: ±0.80% FS
Temp. compensation (0 ~ 100)°C, auto Electrode constant 0.1/1/10 cm -1
Reference Temp. 25°C, 20°C, 18°C
Temp.
Measuring range (0 ~ 100)°C
Resolution 0.1°C
Accuracy 5 ~ 60°C: ±0.4°C Others: ±0.8°C
Other
Display 6.5-inch LCD screen Data storage 1000 sets Power DC 12V/1A
Output USB
Ambient Temp. 5 ~ 40 °C
Ambient Humidity ≤85%
IP grade IP54
Dimensions/N.W. 215×170×37mm/600g
Shipping Size/G.W. 470x430x72mm/3kg

Additional information

Weight 3 kg
Dimensions 47 × 43 × 8 cm
