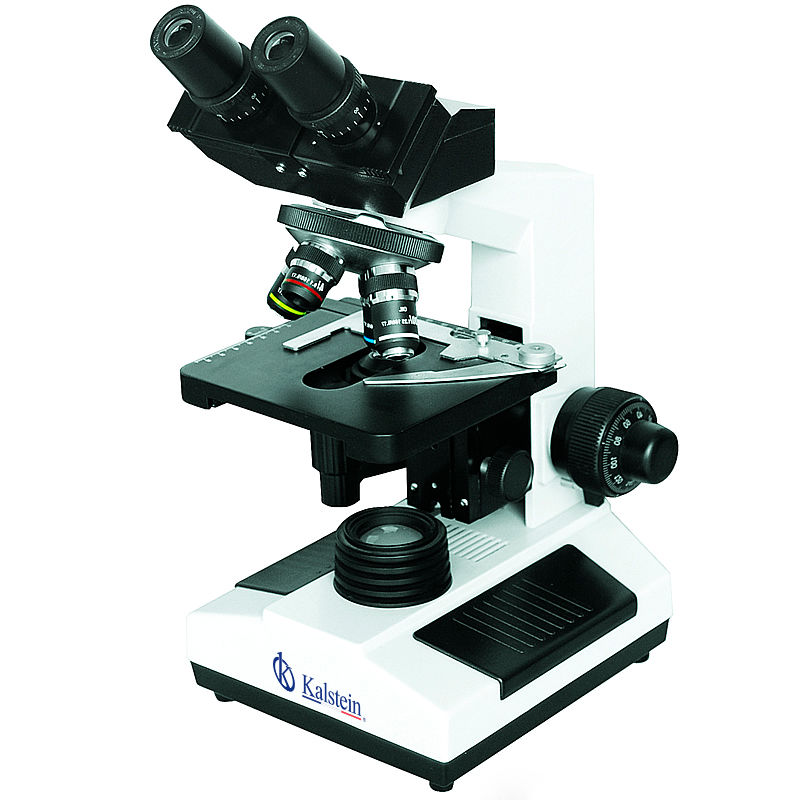

Product Description
- Anti-mould System Head Available
- 195mm Achromatic Objectives, Mechanical Tube Length 160mm
- WF10x/18mm, WF16x/11mm Wide Field Eyepiece
- Monocular, Binocular, Trinocular Head Optional
- Low Position Coaxial Coarse & Fine Focus System
- Double Layer Mechinal Stage
Technical Specifications
| Model | YR0242 | YR0242-1 | |
| Magnification | 40x~1000x | ||
| Head | Sliding Binocular Head, 45° Inclined | o | |
| Sliding Binocular Head, 45° Inclined, Anti-Mould System | o | ||
| Eyepiece | Wide Field WF10x/18mm | ||
| Nosepiece | Quadruple Nosepiece | ||
| Objective | Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil) | ||
| Stage | Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm | ||
| Focusing | Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, Coarse Focusing Stroke 37.7mm/Rotation, With Tension Adjustment, With Up Limit | ||
| Rubber Cover On Focusing Knob | o | ||
| Condenser | N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder | ||
| Filter | Blue, Yellow, Green | ||
| Light Source | Plan-Concave Mirror | ||
| Built-in Illumination 6V20W Halogen Lamp, 100~240V | |||
| YR0242 Biological Microscope Optional Accessories | |||
| Head | Sliding Trinocular Head, 45° Inclined, Anti-Mould System | YR0242-1-op1 | |
| Seidentopf Binocular Head, 30° Inclined, Anti-Mould System | YR0242-1-op2 | ||
| Seidentopf Trinocular Head, 30° Inclined, Anti-Mould System | YR0242-1-op3 | ||
| Eyepiece | Wide Field Eyepiece P16x/11mm | YR0242-1-op4 | |
| Nosepiece | Quintuple Nosepiece | YR0242-1-op5 | |
Additional Information
| Weight | 6,5 kg |
|---|---|
| Dimensions | 32,7 × 27,3 × 42,5 cm |
| Model | YR0242, YR0242-1 |
