Medical ultrasound
Ultrasonography (US) is a medical diagnostic technique based on the action of ultrasound waves. The images are obtained by processing the ultrasound
An ultrasound scanner is a medical device that provides images of most soft tissue without subjecting patients to ionizing radiation. In other words, it provides diagnostic images from echoes obtained by emitting ultrasound waves (the most common). A small instrument called a transducer, very similar to a microphone, emits ultrasound waves. These high frequency sound waves are transmitted to the area of the body being studied and their echo is received. The transducer picks up the echo of the sound waves and a computer converts it into an image that appears on a screen.
Ultrasound is a high frequency sound wave (over 20,000 cycles per second or 20 kHz) that is inaudible to humans. Different tissues modify the waves in different ways, some reflecting them directly and others scattering them as echoes before they reach the transducer. Echoes that are reflected deep are more attenuated than surface echoes. When the echoes return to the transducer, a two-dimensional tissue map can be reconstructed.
Ultrasonography diagnostic equipment applies ultrasound pulses to an object and uses the bouncing waves to trace the object's interior shape. It is used to examine internal organs, fetuses and other aspects of the human body in the medical field.
Patients are not exposed to radiation because diagnostic ultrasound equipment uses sound waves instead of radiation. It also has advantages, such as easier and less unpleasant testing for patients, because it does not require elaborate preparations. However, because ultrasound waves do not pass through bone or air, this technology cannot be used to examine the lungs, stomach or intestines, which contain air.

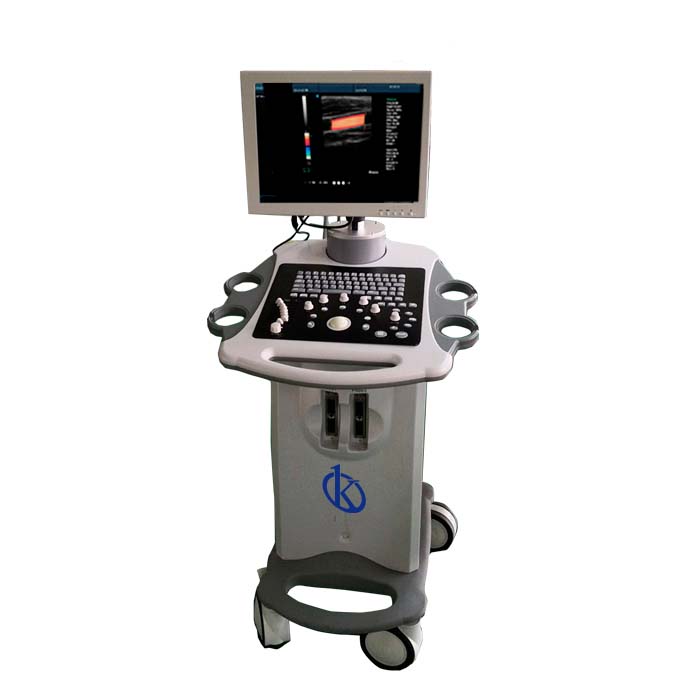

A high resolution color Doppler ultrasound diagnostic device with a sophisticated computer processing platform. This technique is mainly used to diagnose abdominal, cardiac, peripheral vessel, breast, obstetric and gynecological, small organ, urological, muscle, augmentation, pediatric and other conditions. It uses Doppler ultrasound imaging technology, advanced image processing technology (such as digital beamforming technology, tissue harmonic imaging (THI), image speckle suppression, etc.) and an integrated digital graphic management system, as well as an in-house professional measurement software package to meet the diagnostic needs of the clinic.
Large 15-inch LED color display Real Doppler function USB and VGA ports and 4...
Professional software: general veterinary software, obstetric veterinary software...
Windows PC based color Doppler, which can be connected to any brand of printer.
You can insert integrated workstations, databases, image reports, development...
Model | YR05153 | |
Physical specifications | ||
Packing Size | 96cm×75cm×135cm | |
Packing Weight |
165kg |
|
Connectivity/Media/Peripherals | ||
Port Transducer |
two | |
USB ports | two | |
128 hard drive |
128GB (SSD) 120G/200GB SSD (optional) |
|
Printing area | Image, report, image + report | |
Ethernet port | 2(100Mb/1000Mb) | |
External screen | hdmi-vga | |
printer (optional) | USB Printer, Digital Laser Printer, Digital Thermal Printer B/W | |
Hardware specifications of the LED monitor | ||
Size |
fifteen” | |
Contrast Ratio | 800: 01: 00 | |
Resolution | 1024 * 768 pixels | |
Brightness | 230 cd / m2 | |
Depth of color | 24bit | |
Rotate angle | ± 90 ° | |
Gray Levels | 256 | |
General performance |
Digital broadband | 12288 channels |
Haz-ex. | Re-programmable | |
Transmit tension | Adjustable (15 steps) | |
Beam-frequency range above |
1 ~ 40 MHz |
