A pediatric monitor or also called an infant monitor is a medical and electronic device that collects, displays and stores all the vital signs of the pediatric patient. This equipment continuously detects, processes and displays the patient's physiological parameters such as: respiratory rate, blood pressure, body temperature and pulse.
This is achieved in the case of heart rate by amplifying the electrical potentials of the heart, in the case of respiratory rate by amplifying the respiratory movements of the thorax, and the blood pressure and oxygen saturation will depend on the intensity of the pulse. This equipment is equipped with a series of alarms that alert the medical staff in case of an unfavorable situation or outside the desired limits.
Allows monitoring of adults, children and newborns; Slim body with concealed handle, easy to move; Visual and audible alarm...

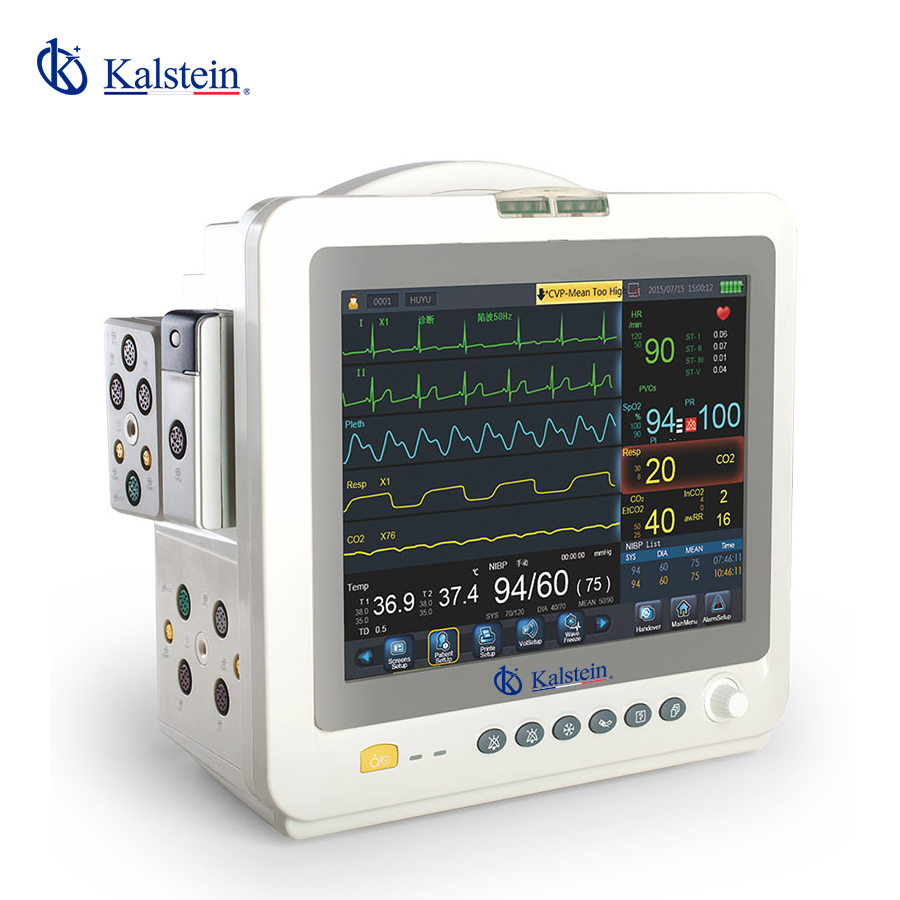

8.4-inch touchscreen; built-in handle; module-ready; 1.6 kg weight; 5-hour battery life; fanless design.

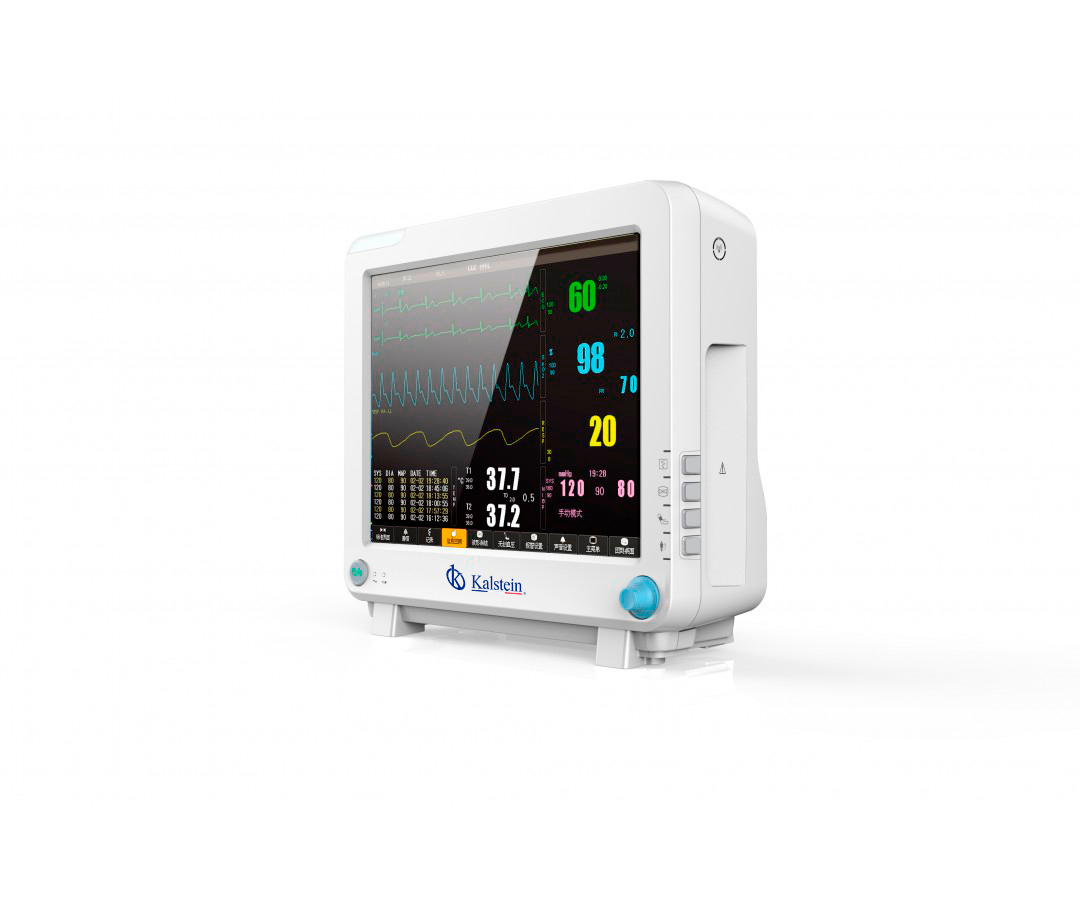

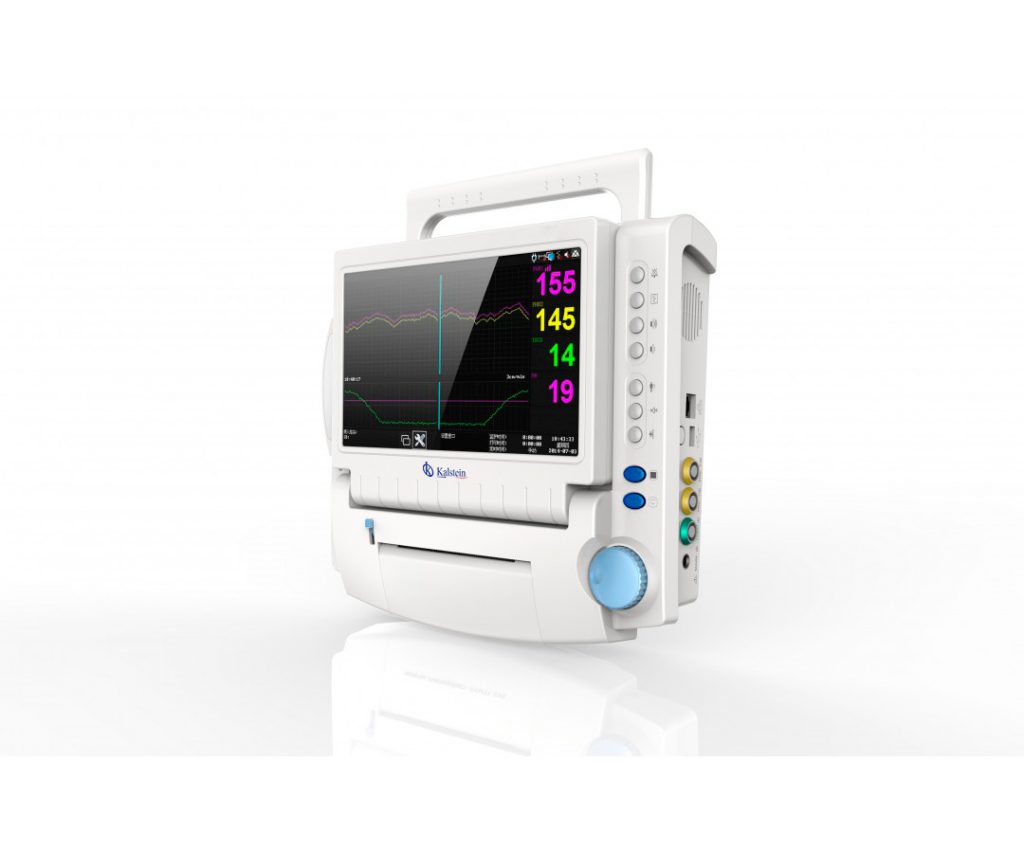

Large 10.2" TFT color display, digital display and waveform oscilloscope of heart rate value (HRF) and blood pressure...
7" TFT screen; digital display and oscilloscope of twin heart rate (HRF) waveform, contraction pressure value
| Model | YR02174 |
| ECG | |
|
Input
|
3 leads or 5 leads selectable |
| 3-conductor cable: RA; THE; LL or R; L; F | |
| 5-conductor cable: RA; THE; RL; LL; V or R; L; N; F; C | |
|
Selection of potential clients
|
3 leads: 1,11,111 |
| 5 leads: I, Il, Ill, AYR, AVL, AVF, V | |
| ECG waveform | 2 channels |
| Win selection | x 0.25, x0.5, x1, x2, x4 Automatic |
| Sweep speed | 12.5mm / s, 25mm / s, 50mm / s |
| Heart rate for newborns | 15-350 BPM |
| Adult / Pediatric Heart Rate | 15-300 BPM |
| Precision | 1 bpm or 1%, whichever is greater |
| Resolution | 1 bpm |
|
Filter
|
Diagnostic mode: 0.05-1 00Hz |
| Monitor mode: 0.5-40Hz | |
| Surgical mode: 1.0-25Hz | |
|
Protection
|
Supports voltage of 5000VAC / 50Hz in isolation |
| Against electrosurgical interference and defibrillation | |
|
Alarm range
|
Newborn: 15-350bpm |
| Adult / Pediatric: 15-300 BPM | |
| Measuring range | -2.0mv to 2.0mv |
| Alarm range | -2.0mv to 2.0mv |
| Arrhythmia analysis | YES |
| Alarm | YES, audible and visual alam ,, alam, recordable event |
| Rhythm detection | Yes |
| Calculation of drug dose | Yes |
| Standby mode | Yes |
| Breathing | |
| Method | Thoracic impedance or EtCO2 |
|
Measuring range
|
Newborn / Pediatric: 0 ~ 150 rpm |
| Adult: 0-120 rpm | |
| Apnea alarm | No alarm, 1 Os, 15 s, 20 s, 25 s, 30 s, 35 s, 40 s selectable |
| Alarm | Yes, audible and visual alarm, recoverable alarm events |
| NIBP | |
| Method | Oscillometric |
| Measurement modes | Manual / Automatic / Continuous |
| Displayed parameters | Systolic, diastolic and MAP (mean arterial pressure) |
| Automatic measuring lime | Adjustable |
| Unit of measurement | mmHg / k Pa selectable |
| Type of measure | Systolic, diastolic, medium |
|
Systolic pressure range
|
Adult: 40-270 mmHg |
| Pediatric: 40-200 mmHg | |
| Newborn: 40-135 mmHg | |
|
Diastolic pressure range
|
Adult: 10-21 0 mmHg |
| Pediatric: 10-150 mmHg | |
| Newborn: 10-100 mmHg | |
|
Medium pressure range
|
Adult: 20-230 mmHg |
| Pediatric: 20-110 mmHg | |
| Newborn: 20-110 mmHg | |
| Precision | ± 6 mmHg |
| Resolution | 1 mmHg |
| Alarm | Systolic, diastolic, medium |
| Overpressure protection | Double safety protection |

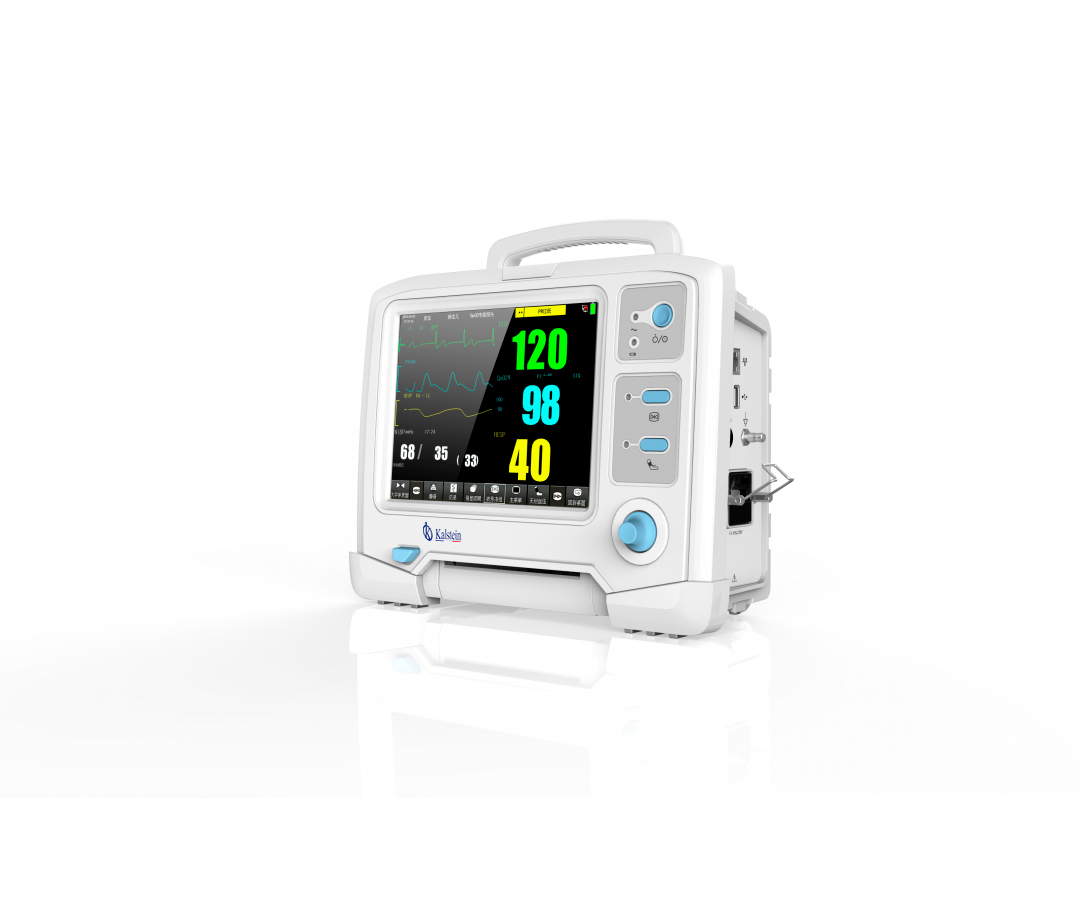

The Patient Monitor is a multi-functional instrument designed to monitor the functional vital signs of adult and pediatric patients. It is found in hospitals and clinics and should only be operated by trained personnel. The equipment is designed to...
Through the control and management of vital signs, the objective is to obtain information on the physiological state of the patient, by means of a monitor, which reflects the values of each sign, these being captured by sensors or electrodes installed in specific...
The monitoring of vital parameters is a very important factor in the strict evaluation of the patient's clinical condition in intensive care units, thanks to medical equipment such as the patient monitor, which allows the detection, treatment and follow-up of vital parameters.....
These workstations are part of the indispensable medical equipment in clinical centers. A patient monitor is a device that, in combination with a system consisting of different parameters, allows for the permanent monitoring and storage of the...
Preventive maintenance of patient monitors reduces risk and increases the useful life of the equipment, among a long list of useful procedures that decrease the likelihood of potential failures. It is advisable to perform it based on the recommendations of the equipment's factory, as well as expert advice and any actions taken on similar assets.
To know the price of the patient monitor and the child monitor, we invite you to send us an email with your request using the contact form.
The delivery time of your Kalstein product depends on the following:
Whether the equipment you are interested in is in stock or needs to be manufactured.
The type of freight you have chosen: air or sea freight.
Equipment in stock:
- Delivery time (air): 15-30 days.
- Delivery time (sea): 45-60 days.
Equipment not in stock:
- Delivery time (air): 30-60 days.
- Delivery time (sea): 60-90 days.
You can make your purchase through :
By e-mail: sales@kalstein.eu
By telephone: +33 (0) 1 78 95 87 02
E-commerce: via the official Kalstein website in your country.
All Kalstein equipment is guaranteed for 1 year against manufacturing defects. The warranty does not cover damage caused by improper installation or use by the user, by transportation defects or by uses other than those specified by the manufacturer. The warranty does not cover electrical parts or consumables. For more information, please consult our "terms and conditions" by clicking here (LINK TO TERMS AND CONDITIONS PAGE).
At Kalstein, we make it easy for our customers to receive inductions and technical assistance through new online methods. You can view our instructional videos, technical assistance and tips provided by a Kalstein team on our Youtube channel (Kalstein English).
Of course, you can request a quote for the Kalstein equipment you are interested in directly on our official website. Once you have identified the model of your choice, click on (LINK TO CONTACT PAGE).
