Electrosurgical Unit
The electrosurgical unit is a medical equipment capable of transforming electrical energy into heatto cut or coagulate tissues and cauterize them simultaneously, using currents that develop at high frequencies usually above 200,000 Hz. In other words, this equipment is responsible for generating high-frequency alternating current from low-frequency electrical currents, with the aim of achieving a desired thermal effect on a biological tissue..
The use of this new electronic equipment considerably reduces tissue bleeding and produces very little thermal damage, which in turn translates into a remarkable time saving. It also allows effective asepsis by reducing the likelihood of transmitting infections from diseased tissues to healthy tissues.
Types of Electrosurgical Unit that the Medical Sector may need
Electrosurgical Generators YR02144
Electrosurgical generator combines versatility and safety, for all general electrosurgical procedures such as cutting and ...

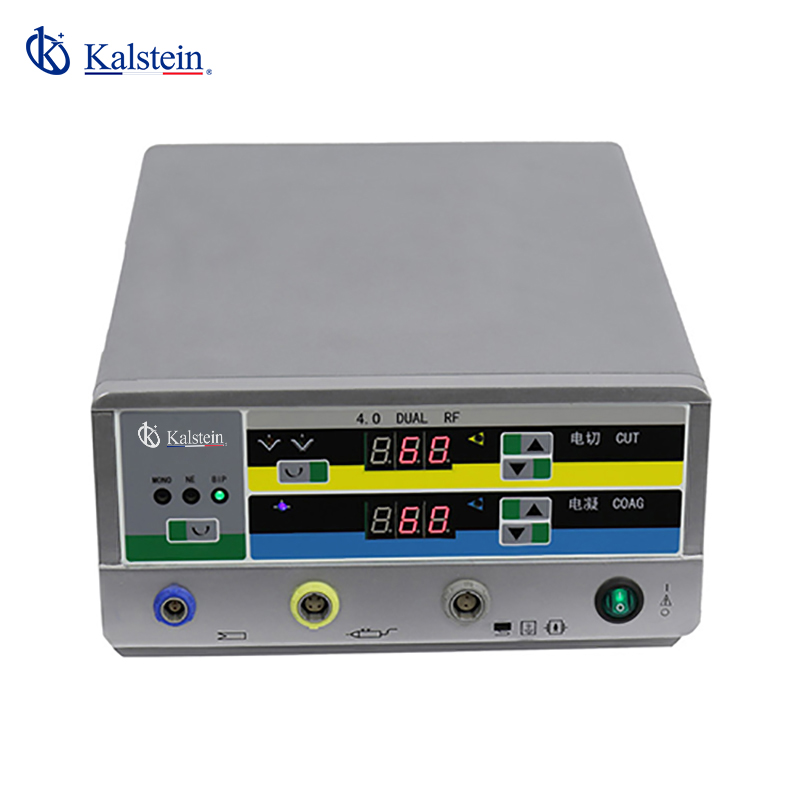

Electrosurgical Generators YR02147
YR electrosurgical generator series is a reliable electrosurgical unit for loop electrosurgical excision procedure...
Electrosurgical Generators YR02145
YR electrosurgical series generator is a versatile electrosurgical unit for all around surgical procedures ...
Our Best Selling Electrosurgical Unit
The electrosurgical generator combines versatility and safety, for all general electrosurgical procedures such as cutting and clotting in clinics, offices and emergency rooms. The YR electrosurgical generator offers a maximum power of 400 watts. 7 monopolar and 3 bipolar outputs are available.
- The electrosurgical generator combines versatility and safety, for all general electrosurgical procedures such as cutting and clotting in clinics, offices and emergency rooms.
- The YR electrosurgical generator offers a maximum power of 400 watts.
- 7 monopolar and 3 bipolar outputs are available.
Model | YR02144 | |||
Monopolar | ||||
Cutting mode | Max. Output power (watts) | Load (ohms) | Open circuit Vp-p | Crest factor |
Pure | 400 watts | 500 Ω | 2,300v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Mix 1 | 300 watts | 500 Ω | 2,700v | Sun Jan 02 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Mix 2 | 200 watts | 500 Ω | 3,200v | Mon May 02 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Mix 3 | 150 watts | 500 Ω | 3,700 v | Mon Jan 03 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Coagulation mode | ||||
Point | 120 watts | 500 Ω | 5,600v | Thu Jan 06 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Gentle | 120 watts | 500 Ω | 3,400 v | Thu Jan 06 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Spray | 120 watts | 500 Ω | 8,500 v | Tue Mar 08 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Bipolar | ||||
Cutting mode | ||||
Standard | 70 watts | 200 Ω | 1,450v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Coagulation mode | ||||
Standard | 70 watts | 500 Ω | 240v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Precise | 70 watts | 200 Ω | 360v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Connecting accessories and supplies | ||||
Finger pencil | two | |||
Foot switch pencil | one | |||
Patient return electrode | one | |||
Foot switch | one | |||
Ac power supply | one | |||
Potential equalization | one | |||
Power characteristic | ||||
Rate frequency | 512 kHz (110 / 240vAC, 60 / 50Hz) | |||
Isolated output | YES | |||
Quantitative visualization of the contact area | YES, for the «Split» type of neutral electrode | |||
Contact area indicator lamp | 10 lamps (one for 10% contact), alarm beep and flash if contact <20% | |||
Definition of Solid / Split Neutral Electrode | YES, the ‘Split’ or ‘Solid’ indicator light comes on | |||
Adjustable alarm volume | YES | |||
Operating duty cycle | 10 seconds ON, 30 seconds OFF | |||
Cooling method | Convection | |||
Regulation | ||||
Type According to EN 60601-1 | CF | |||
Protection class according to EN 60601-1 | class I | |||
Classification acc. According to MDD 93/42 / EEC | IIb | |||
Physical | ||||
Dimension (WxDxH) | 460 x 410 x 160 mm | |||
Weight | 11.2 kg |
Analysis of the best Electrosurgical Unit for the Medical Sector
What is thermofusion?
Vascular thermofusion or sealing refers to the process used in electrosurgery to seal blood vessels and tissue bundles before tissue section...
What is the pharadic effect?
The pharadic effect consists of neuromuscular stimulation when frequencies are applied below 100,000 Hz, which can generate an electric shock in the patient and become...
Electrosurgery, what is it and how does it work?
The electrosurgery unit, or electrosurgery, is a medical device that uses electrical phenomena to produce heat...
What is an electrosurgical knife?
The electrosurgical unit is a very important medical and electronic equipment in the health sector, since this ...
Electrosurgical Unit Model Catalog on offer
Guides to becoming an expert in Electrosurgical Unit
What are the general principles of electrosurgery?
Electrosurgery is a surgical subspecialty where high frequency electrical energy is used on any biological tissue...
Advantages and risks when using an electrosurgical unit
The electrosurgical unit is also known as electroscalpel, it is a medical equipment of electronic origin that...
Electrosurgical unit for hospitals and clinics
The electrosurgical or electrosurgical unit, also called an electrosurgical unit, is a medical device that uses electrical...
Electromechanical haemostatic devices and electroscalpels
Electrosurgery is a medical procedure that is performed using electrical current to cut, remove, dispose of malignant tissue and keep bleeding in the tissues under control. For this it makes use of a series of equipment known as electromechanical haemostatic devices and electroscalpels.....
