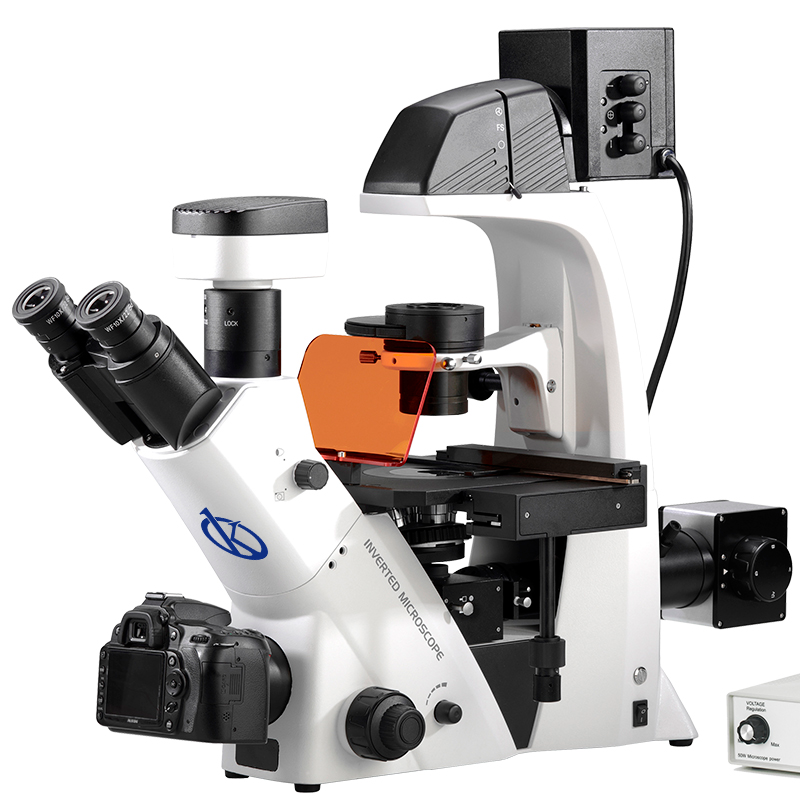

Inverted LED Fluorescent Microscope YR05791 – YR05792
Manufacturer: Kalstein
Manufacturer: Kalstein
Product Description

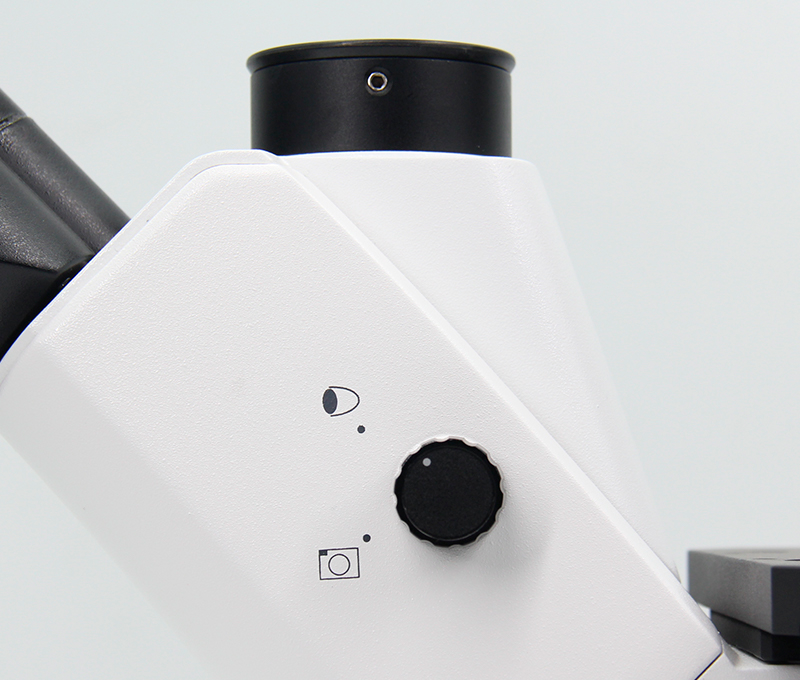

- Seidentopf Trinocular Head Inclined 45°Interpupillary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80

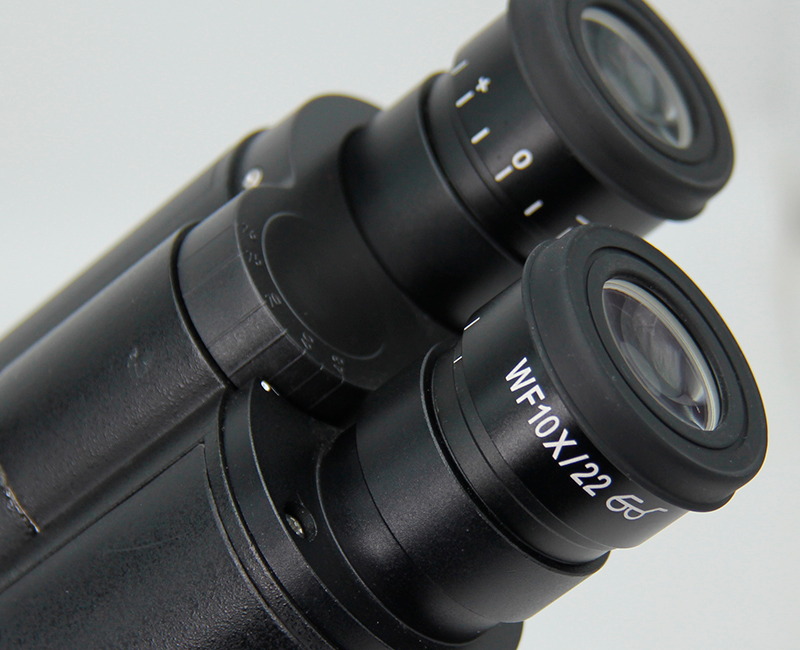

WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable
Reflect Light
- Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V

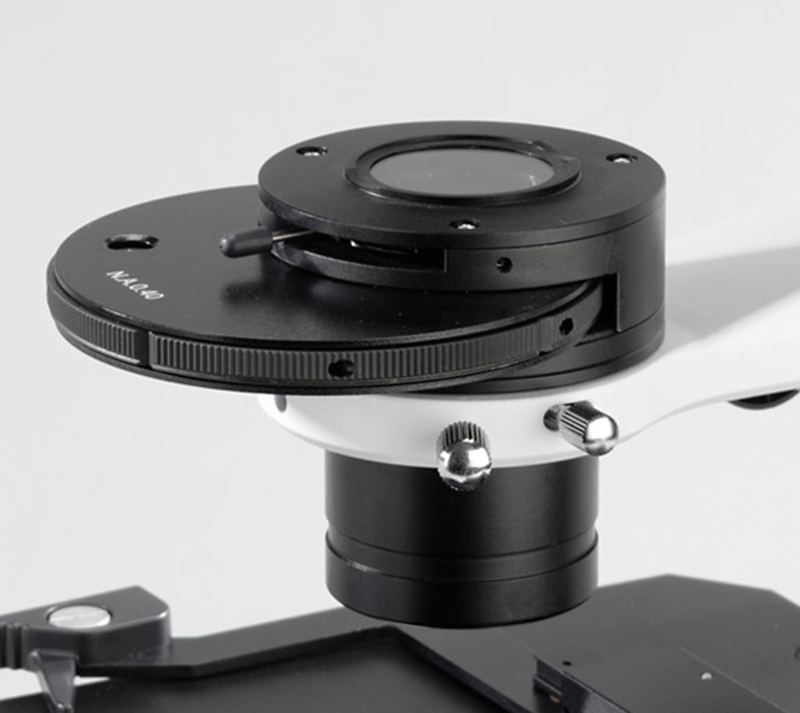

Condenser
- 4 Holes Rotating Disc Phase Contrast Condenser
N.A.0.4, W.D. 45mm, Up/Down Adjustable
Long Working Distance
- Working Distance 72mm (With Condenser), 195mm (Without Condenser)
Objectives
- LWD Infinity Plan Fluorescent Objectives 4x, LWD Infinity
Plan Phase Contrast Fluorescent Objectives 10x, 20x, 40x
Working Stage
- Mechanical Stage Size 210x241mm, Round Slide Size Φ110mm
Culture Dish Holder 54mm
ECO, Auto Power Off System
- Power Off Automatically Upon User Leaving 10 Minutes,
- Power On Automatically Upon User Approaching Detected,
- This Function Can Be Shut Down Manually
Adapter
- Photo Adapter With 1.7x Photo Eyepiece,100% Light For Camera Port,
- For Canon SLR Digital Camera

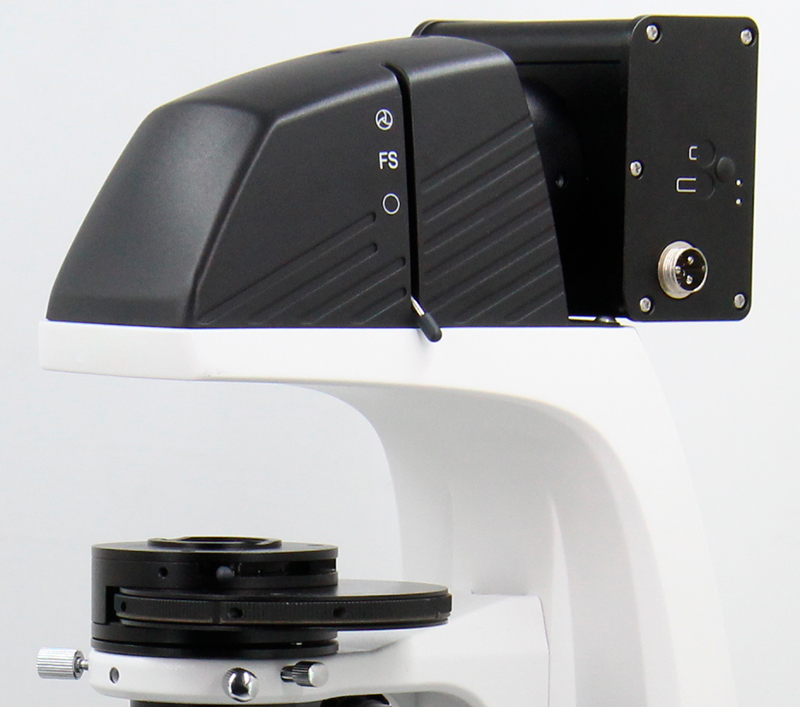

Epi Fluorescence Illumination
- China Fluorescent Filter,
- 5W LED Lamp House
- 5W LED Power Box
- Ultraviolet Protection Barrier
- Fluorescent Slide Unit 3 Holes, With Filter Diaphragm, Center Adjustable
- 5W LED B,G Lamp Each 1 pc
Technical Specifications
| Model | YR05791 | YR05792 |
| Features | Infinity DualPhoto Port ECO (Auto Power Off) |
|
| Optical System | Infinity Plan | |
| Head Type | Seidentopf Trinocular | |
| Head Interpupillary | 48~76mm | |
| Head Light Path | E100:P0/E20:P80 | |
| Eyepiece Features |
Diopter Adjustable | |
| Eyepiece Diameter |
30.0mm | |
| Nosepiece Holes |
5 holes | |
| Objective Features |
LWD | |
| Objective Type |
Infinity Plan Phase Contrast |
|
| Working Stage Features |
Size ≥140x140mm | |
| Working Stage Type |
Fixed + Attachable | |
| Focusing Features |
Tension Adjustable | |
| Condenser Features |
Slor for PH Slide | |
| Condenser Type |
Phase Contrast | |
| Condenser N.A | 0.4 | |
| Light Source Features |
Kohler Illumination LED 5W Halogen 30W Transmit & Reflect |
|
| Light Source Type |
Halogen Fluorescent | |
| Video Adapter | C-Mount 0.3x | |
| Fluorescent Band | 3 Bands | – |
Additional Information
| Weight | 17 kg |
|---|---|
| Dimensions | 66 × 60 × 33 cm |
| Model | YR05791, YR05792 |
