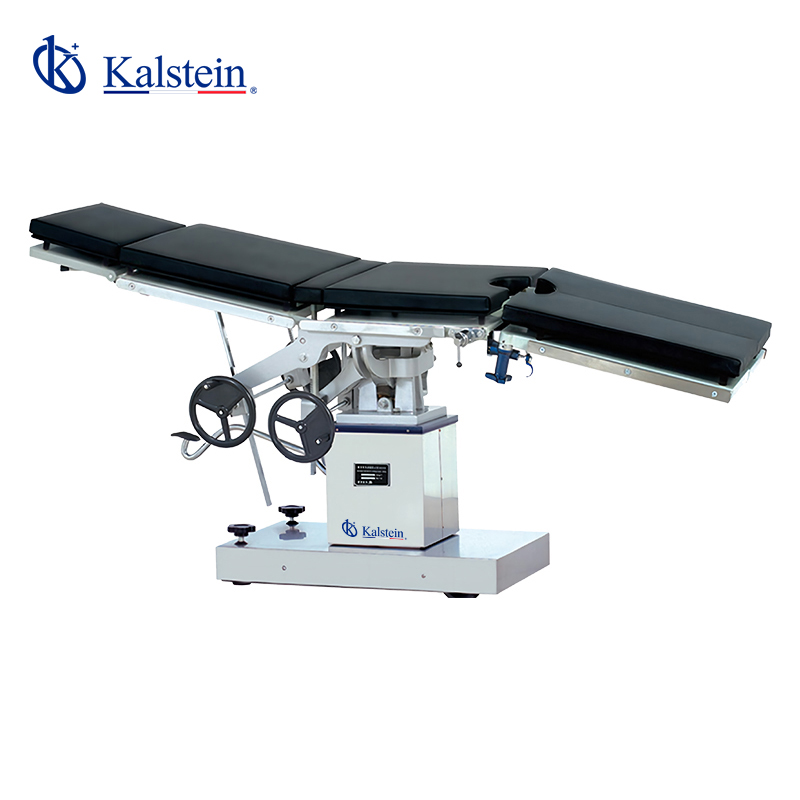

Operating Tables YR02154

Manufacturer: Kalstein


  • Imported Y type sealing ring with good sealing performance and is durable.
  • Rotary brake device which is easy for moving operating table.
  • All actions are controlled on both sides.
  • The base seat and upright column covering are made of high quality 304 stainless steel.
  • Double layers platform can support X-ray function.
Technical Specifications
Model YR02154
Length/width 2050+/-50mm&480+/-20mm
Elevation(up/down) (750-950)mm+/-50mm
Trendelenburg 20°
Reverse Trendelenburg 20°
Lateral Tilt 20°/20°
Head rest(up/down) 30°/90°
Leg Plate(up/down) 90°
Back Plate(up/down) 75°/5°
Kidney bridge elevation 100+/-20mm

Additional information

Weight 320 kg
Dimensions 116 × 67 × 102 cm
