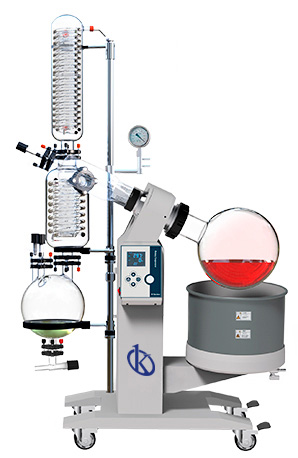

Rotary Evaporator YR02307 // YR02310

Manufacturer: Kalstein

Manufacturer: Kalstein

Product Description

Large capacity and large opening of evaporating flask give larger evaporation surface. The evaporating flask keeps rotating when it is constantly heated by water bath, and solvent evaporates more efficiently under vacuum condition. It can be used for pilot-scale production in biology engineering, pharmaceutical industry, chemical industry and food processing. It usually works with water circulating vacuum pump, diaphragm vacuum pump, recirculating chiller, constant-temperature circulator, low temperature circulating pump, etc.

Advantages
  • Patented technology of double sealing of Teflon(PTFE) and FV rubber ensures the negative pressure level.
  • Automatic switch valve makes continuous collection possible without affecting vacuum degree and without stopping distillation.
  • Teflon discharge valve is corrosion resistant and contamination free.
  • Water bath jacket protecting operator from scalding by hot liquid.

Model YR02307 YR02308 YR02309 YR02310
Evaporating flask 5L, flange opening: Φ50mm 10L, flange opening: Φ125mm 20L, flange opening: Φ125mm 50L, flange opening: Φ125mm
Receiving flask(L) 3 5 10 20
Speed-regulation DC stepless speed-regulation
Power supply 220V-240V, 50/60Hz 3~, 380V, 50Hz
Overall power(kW) 2.3 3.8 6.3 6.3
Rotation speed (rpm) 20~140 20~130 20~130 20~110
Power of motor(w) 250 250 250 250
Condenser Vertical type double coil pipe Vertical type, Main + auxiliary triple-circulating cold traps
Bath material Stainless steel 304
Temperature range RT~99℃
Temperature display Digital display
Sealing 20mbar/h
Evaporating Speed (L/h)
Water 2.0 3.2 5.0 9.0
Ethanol 5.4 8.6 14.3 24.5
Lifting function Motorized Lift Motorized lift + Manual lift
Elevating stroke(mm) 0~150 0~160 0~190 0~180
Dimensions(mm) 835W×400D×1090H 990W×550D×1655H 1195W×635D×2070H 1345W×770D×2140H
Net Weight(kg) 60 85 115 200

Additional Information

Model

YR02307, YR02308, YR02309, YR02310

Measure

Main machine: 104 x 62 x 126cm Glass parts: 86 x 73 x 80cm, Main machine: 117 x 71 x 148cm Glass parts: 104 x 87 x 83cm, Main machine: 44 x 74 x 92cm Glass parts: 60 x 61 x 62cm, Main machine: 90 x 55 x 117cm Glass parts:72 x 67 x 69cm

Weight

Main machine: 109KG Glass parts: 60KG, Main machine: 178KG Glass parts: 86KG, Main machine: 47KG Glass parts: 28KG, Main machine: 80KG Glass parts: 45KG
