Product Description

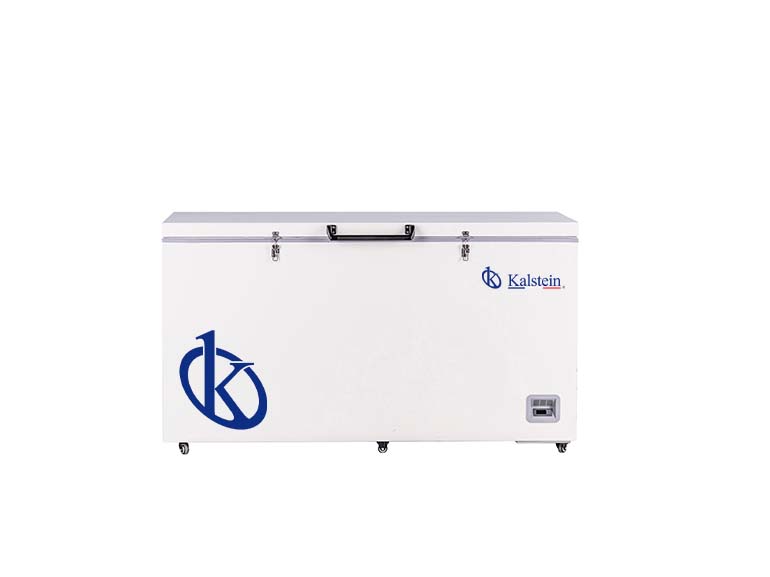

485L Chest Medical Freezer From China Made Of Sprayed Plate Steel For Hospital And Laboratory Use
Promed Medical Freezers are designed to store bio-samples .
Safety
- Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 12 hours without AC power.
- Visual and audible alarm system:High/low temperature,Sensor error, Thermostat failure alarm,power failure alarm
- Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
- Keyboard lock, password protection to avoid set parameter randomly.
- Wide available voltage range: 198V~242V.
Humanized design
- 4 casters,2 casters with stopper for easy moving and fixation.
- 1 Standard test hole(25mm),convenient for temperature monitoring.
Features
- Wide temperature range :10℃~32℃ambient temperature can reach -10℃～-25℃
- Accurate Temperature control technology to make the temperature maintain-10℃～-25℃and accuracy 0.1 °C.
- SPCC sprayed steel external material and inner chamber for friendly using and easy cleaning.
- High-density polyurethane foam.
Certificate
- ISO14001.ISO9001.ISO13485.ISO45001
- FDA List and CE
Warranty
- 1 year free spare parts and remote technical support.
Special
- 4 visual and audible alarms. 1 Standard test hole(25mm
Technical Specifications
| Model | YR05318 |
| Performance | |
| Temperature Range | -10~-25°C |
| Ambient Temperature | +10~+32°C |
| Controller | Microprocessor |
| Display | Digital Display |
| Refrigeration System | |
| Compressor/Brand | 1 |
| /CUBIGEL | |
| Refrigerant | R290 |
| Cooling Type | Direct cooling |
| Defrost Type | Manual |
| Electrical Data | |
| Power Supply(V/Hz) | 220~240V/50~60;115/60 |
| Rated Power(W) | 295 |
| Electrical Current(A) | 2.45 |
| Power Consumption | 3.45 kWh/24h |
| Dimensions | |
| Capacity | 485L/17.12 cu.ft |
| Interior Size(W*D*H) | 1455*525*665mm |
| Exterior Size(W*D*H) | 1655×755×915mm |
| Package Size(W*D*H) | 1710×885×1020mm |
| N.t./G.t.(approx) | 124/138KG |
| Loading Qty(20’/40’/40’H) | 12/26/26 |
| Alarm | |
| High/Low Temperature | Y |
| Sensor Error | Y |
| Power Failure | Y |
| Accessories | |
| Caster | 6 |
| Remote alarm port | / |
| Test hole | 1/25MM |
Additional Information
| Weight | 160 kg |
|---|---|
| Dimensions | 175 × 87 × 111,5 cm |
